Home
Lamps and lights
RZB
LED spotlight
RZB 721993.0031 Home 207 15W 3000K 136x90x210 Erdsp+Zult LED spotlight

RZB 721993.0031 Home 207 15W 3000K 136x90x210 Erdsp+Zult LED spotlight

In stock

SKU: 531705

Price on request

€135.27

€0

Overview

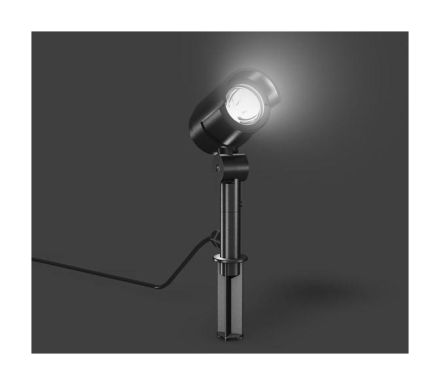

Can be pivoted vertically by 90°. Design-integrated barge to limit the light output on one side. Housing: powder-coated die-cast aluminum. Cover: clear glass. Light source (mains voltage LED module) included in delivery. With ground spike. With 5000 mm connecting cable including protective contact plug. Energy efficiency class A+

Property	Value
Max. System power:	10 W
Rated luminous flux according to IEC 62722-2-1:	680 lm
Housing color:	anthracite
Housing material:	aluminum
Protection class (IP):	IP65
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	no
Suitable for recessed mounting:	no
Length:	136 mm
Width:	90 mm
Height/depth:	210 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	10 W
Beam angle:	wide beam 41-80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	not required
Impact resistance:	IK06
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of bulbs:	1
Luminous flux:	680 lm
Cover material:	Transparent glass
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC
Light colour:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
With Light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	42 to 45 mA
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	without
Light emission:	direct
Rated service life L70/B50 at 25 °C:	40000 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-20 to 25 °C
Type of wiring:	Termination
Power factor:	0.99
Number of poles:	3
Conductor cross-section:	1.50 mm²
Connection type:	other
Luminaire luminous efficacy:	68 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM3

Characteristics

HABHome 207 15W 3000K 136x90x210 Earth+Zult

Manufacturer

HAN721993.0031

GTIN4051859211594

Covering the luminaire with thermal insulation material possibleYes

Connection typeOther

Type of wiringDiploma

Beam angleWide beam 41-80°

Rated lifetime L70/B50 at 25 °C40000 hours

Rated luminous flux according to IEC 62722-2-1680lm

Rated ambient temperature according to IEC62722-2-1-20 to 25 °C

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Width90 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power10W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorAnthracite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth210 mm

LED nominal current at constant current42 to 45 mA

Power factor0.99

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy68lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux680lm

Light distributorWithout

Light distributionSymmetrical

Length136 mm

Max. system performance10W

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

ReflectorWithout

Impact resistanceIK06

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum
