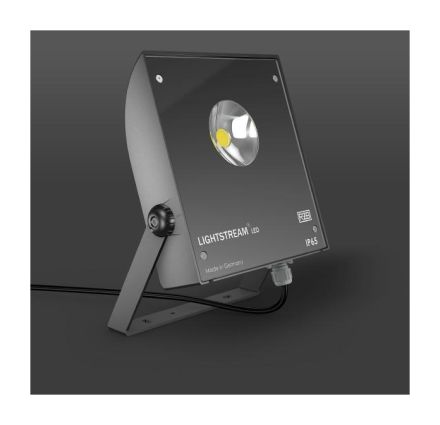

RZB 722139.1131.1 Lightstream Midi 56 W 6700lm 840 anthr LED spotlight

RZB 722139.1131.1 Lightstream Midi 56 W 6700lm 840 anthr LED spotlight

In stock

SKU: 723396

Price on request

€488.73

€0

Overview

High-quality LED outdoor spotlight. Housing made of corrosion-resistant die-cast aluminum for outdoor use, powder-coated. Bracket made of aluminum, powder-coated. Angle of attack can be adjusted using the angle scale. Comes as standard with Gore© Protective Vents diaphragm valve to prevent condensation. Reflector made of purest aluminum, highly gloss anodized. LED COB with interchangeable socket. Cover made of toughened safety glass with a ceramic coating. Light distribution is rotationally symmetrical and wide-beam. Quick device connection without disturbing the housing via screwless connectors with bayonet lock. Plug-in terminal up to 5 x 2.5 mm for power cable max. 13 mm.

Property	Value
Max. System power:	56 W
Rated luminous flux according to IEC 62722-2-1:	6700 lm
Housing color:	anthracite
Housing material:	aluminum
Protection class (IP):	IP66
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	267 mm
Width:	138 mm
Height/depth:	343 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for lamp power:	56 W
Beam angle:	extremely wide beam >80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK07
Luminaire with limited surface temperature 'D-mark':	yes
Reflector:	high-gloss
Suitable for number of bulbs:	1
Luminous flux:	6700 lm
Cover material:	transparent glass
Cover of the lamp with Thermal insulation material possible:	yes
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	yes
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	233 to 255 mA
Dimming depends on Operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-25 to 35 °C
Type of wiring:	suitable for through wiring
Power factor:	0.98
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug-in terminal
Luminaire luminous efficacy:	120 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM2

Characteristics

HABLightstream Midi 56 W 6700lm 840 anthracite

Manufacturer

HAN722139.1131.1

GTIN4051859418467

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-16700lm

Rated ambient temperature according to IEC62722-2-1-25 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width138 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM2

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power56W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorAnthracite

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth343 mm

LED nominal current at constant current233 to 255 mA

Power factor0.98

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy120lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux6700lm

Light distributorReflector

Light distributionSymmetrical

Length267 mm

Max. system performance56W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

ReflectorHigh gloss

Impact resistanceIK07

IP protection)IP66

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum

RZB 722139.1131.1 Lightstream Midi 56 W 6700lm 840 anthr LED spotlight
