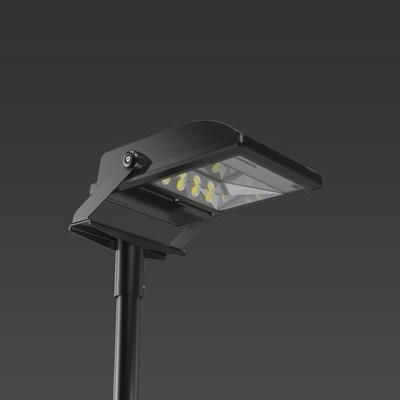

RZB 722145.1131.1 Lightstream LED Maxi 320W 30245lm 840 LED spotlight

RZB 722145.1131.1 Lightstream LED Maxi 320W 30245lm 840 LED spotlight

In stock

SKU: 722591

Price on request

€844.35

€0

Overview

LED spotlight for accent and area lighting. Housing made of corrosion-resistant die-cast aluminum for outdoor use, powder-coated. Stainless steel bracket, powder-coated, suitable for mast mounting. Angle of attack can be adjusted and locked in 6° increments with a precise angle scale. Supplied as standard with GoreT Protective Vents diaphragm valve to prevent condensation. Asymmetrical reflector made of anti-reflective MIRO-SILVER®. LED COB with interchangeable socket. ESG cover. Asymmetrical light distribution. Thermally decoupled operating device compartment. Plug-in terminal up to 5 x 2.5 mm² for power cable max. ø 13 mm. Wind attack area Aw = 0.052 m². Approved for use in the food and beverage industry.

Property	Value
Max. System power:	314 W
Rated luminous flux according to IEC 62722-2-1:	32100 lm
Housing color:	anthracite
Housing material:	aluminum
Protection class (IP):	IP65
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	509 mm
Width:	374 mm
Height/depth:	174 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for lamp power:	314 W
Beam angle:	free beam/diffuse
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Light distribution:	asymmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK08
Luminaire with limited surface temperature 'D-mark':	yes
Reflector:	other
Suitable for number of bulbs:	4
Luminous flux:	32100 lm
Cover material:	transparent glass
Covering the light with thermal insulation material possible:	yes
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	1308 to 1427 mA
Dimming depending on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in the device):	no
Dimming GPRS:	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Trailing edge dimming:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Total harmonic distortion (THD):	0.20
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-40 to 35 °C
Type of wiring:	suitable for through wiring
Power factor:	0.95
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug-in terminal
Luminaire luminous efficacy:	103 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	650 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM2

Characteristics

Total harmonic distortion (THD)0.20

HABLightstream LED 320W 30245lm 840

Manufacturer

HAN722145.1131.1

GTIN4051859437963

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Beam angleFree-radiating/diffuse

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-132100lm

Rated ambient temperature according to IEC62722-2-1-40 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width374 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM2

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power314 W

Suitable for number of lamps4

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorAnthracite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth174 mm

LED nominal current at constant current1308 to 1427 mA

Power factor0.95

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy103lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux32100lm

Light distributorReflector

Light distributionAsymmetrical

Length509 mm

Max. system performance314 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

ReflectorOther

Impact resistanceIK08

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum
