RZB 722146.003 HB 450 20W 2200lm 840 black LED spotlight

RZB 722146.003 HB 450 20W 2200lm 840 black LED spotlight

In stock

SKU: 704966

Price on request

€29.22

€0

Overview

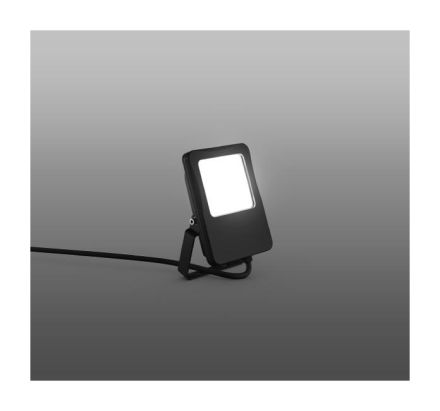

Spotlight for fixed connection. Housing: die-cast aluminum, powder-coated. Bracket: steel, powder-coated. Cover: glass, clear. Flood, wide beam. Pre-wired with 500 mm connection cable.

Property	Value
Max. System power:	20 W
Rated luminous flux according to IEC 62722-2-1:	2200 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP65
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	150 mm
Width:	112 mm
Height/depth:	33 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	20 W
Beam angle:	extremely wide beam >80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK08
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of bulbs:	1
Luminous flux:	2200 lm
Cover material:	Transparent glass
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC
Light colour:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	yes
Suitable for truss mounting:	no
With Light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	83 to 91 mA
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	without
Light emission:	direct
Total harmonic distortion (THD):	0.20
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-20 to 35 °C
Wiring type:	Termination
Power factor:	0.90
Connection type:	other
Luminaire luminous efficacy:	110 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Photobiological safety according to EN 62471:	RG1

Characteristics

Total harmonic distortion (THD)0.20

HABHB 450 20W 2200lm 840 black

Manufacturer

HAN722146.003

GTIN4051859491224

Covering the luminaire with thermal insulation material possibleYes

Connection typeOther

Type of wiringDiploma

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-12200lm

Rated ambient temperature according to IEC62722-2-1-20 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width112 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power20W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorBlack

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth33 mm

LED nominal current at constant current83 to 91 mA

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy110lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2200lm

Light distributorWithout

Light distributionSymmetrical

Length150 mm

Max. system performance20W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

ReflectorWithout

Impact resistanceIK08

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum
