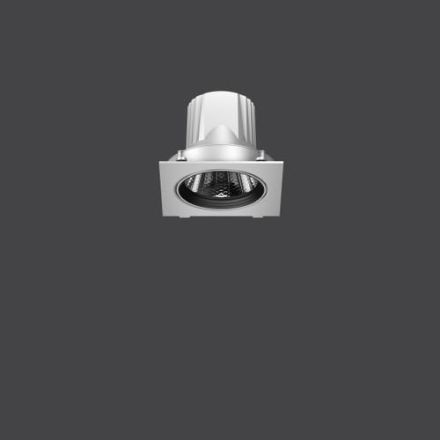

RZB 722203.004 Magcardo LED/33W-fresh meat 172x167 LED spotlight

RZB 722203.004 Magcardo LED/33W-fresh meat 172x167 LED spotlight

In stock

SKU: 941057

Price on request

€178.85

€0

Into a basketIn the basketGo

Overview

Magcardo LED/33W-fresh meat 172x167 LED spotlight

Feature	Value
System power:	33 W
Rated luminous flux:	2050 lm
Housing color:	Silver
Housing material:	Aluminum
Protection class (IP):	IP20
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	155 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Length:	172 mm
Width:	167 mm
Height/depth:	137 mm
With motion detector:	no
Suitable for wall mounting:	no
Nominal voltage:	220 to 240 V
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Suitable for lamp power:	33 W
Operating device:	LED operating device, current-controlled
Beam angle:	wide beam 41-80°
Impact resistance:	IK03
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	other
Suitable for number of light sources:	1
Luminous flux:	2050 lm
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	other
Suitable for track mounting:	no
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
DMX dimming:	no
DSI dimming:	no
Potentiometer dimming (device-integrated):	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Phase control dimming:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Total harmonic distortion (THD):	0.20
Protection class (NEMA):	other
Rated ambient temperature according to IEC 62722-2-1:	-20 to 25 °C
Wiring type:	Termination
Power factor:	0.90
Number of poles:	2
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal
Luminous efficacy:	63 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	yes
Glow wire test in accordance with IEC 60695-2-11:	650 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM3
Replaceable operating device:	yes
DALI-2 dimming:	no
Luminous flux maintenance with an average service life of 50,000 hours at an ambient temperature of 25 °C:	90 %
Failure rate with an average service life of 50,000 hours at an ambient temperature of 25 °C. (tq):	10 %
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Max. number of luminaires circuit breaker B16:	34
Max. Number of lights circuit breaker C16:	57
Integrated emergency power supply:	no
IFTTT support available:	no
Glare limitation (UGR):	18.90
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

Total harmonic distortion (THD)0.20

Rated luminous flux2050 lm

HABMagcardo LED/33W-fresh meat 172x167

Manufacturer

HAN722203.004

GTIN4051859867890

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Beam angleWide beam 41-80°

Beam angle adjustableNo

Replaceable operating deviceYes

Rated ambient temperature according to IEC 62722-2-1-20 to 25 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Glare limitation (UGR)18.90

Width167 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth155 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature adjustableNo

VersionWithout

Suitable for number of light sources1

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power33W

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorSilver

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth137 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.90

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy63lm/W

LampsLED not replaceable

Light emissionDirect

Light colorOther

Luminous flux2050lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.90 %

Light distributorReflector

Light distributionSymmetrical

Length172 mm

Max. number of luminaires Circuit breaker B1634

Max. number of luminaires Circuit breaker C1657

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

ReflectorOther

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC

System performance33W

AdjustabilityRotatable and pivotable

Housing materialAluminum
