Total harmonic distortion (THD)0.20

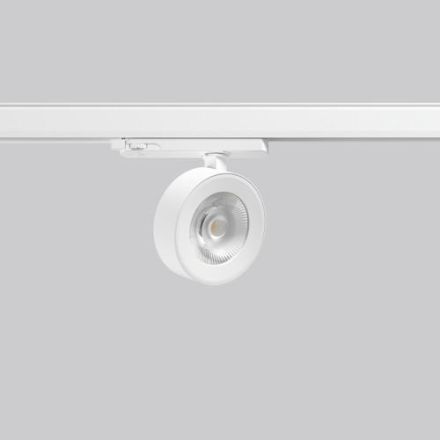

HABArline LED/20/25W-4000K D120,H150,1
HAN742188.002.1
GTIN4051859762638
Covering the luminaire with thermal insulation material possibleYes
Connection typeBusbar adapter
Type of wiringDiploma
Beam angleNarrow beam 11 - 20°
Beam angle adjustableNo
Replaceable operating deviceYes
Outer diameter120 mm
Rated ambient temperature according to IEC 62722-2-1-20 to 35 °C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Glare limitation (UGR)19.60
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DALI-2No
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color consistency (McAdam ellipse)SDCM3
Color temperature4000K
Color temperature adjustableNo
Color rendering index CRI90-100
VersionWithout
Suitable for number of light sources1
Suitable for surface mountingNo
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for lamp power20 to 25 W
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingYes
Suitable for truss mountingNo
Suitable for wall mountingNo
Housing colorWhite
Height/Depth150 mm
IFTTT support availableNo
Compatible with Amazon AlexaNo
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Constant luminous flux controlNo
Power factor0.90
Luminaire with limited surface temperature D-mark according to EN 60598-2-24No
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux adjustableStages
Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.80 %
Light distributorWithout
Light distributionSymmetrical
Max. number of luminaires Circuit breaker B1653
Max. number of luminaires Circuit breaker C1684
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage220 to 240 V
Emergency power supply integratedNo
Brushed surfaceNo
Surface protectionPowder coated
Without dimming functionYes
Photobiological safety according to EN 62471RG1
Number of poles2
ReflectorWithout
Impact resistanceIK06
IP protection)IP20
Protection class (NEMA)Other
Protection classII
Voltage typeAC
System performance25W
AdjustabilityRotatable and pivotable
