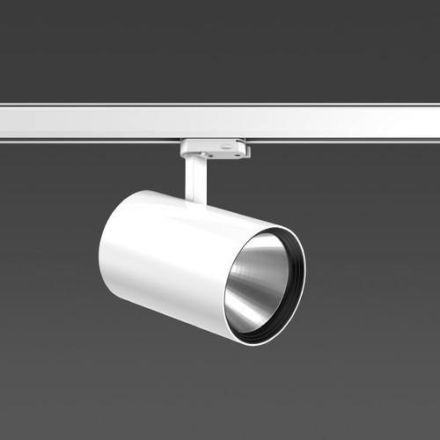

RZB 742228.002 Deecos LED/33W-fresh meat D123,R.mi LED spotlight

RZB 742228.002 Deecos LED/33W-fresh meat D123,R.mi LED spotlight

In stock

SKU: 935690

Price on request

€212.65

€0

Into a basketIn the basketGo

Overview

Deecos LED/33W-fresh meat D123,R.mi LED spotlight

Feature	Value
System power:	33 W
Rated luminous flux:	2150 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	123 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Height/depth:	200 mm
With motion detector:	no
Suitable for wall mounting:	yes
Nominal voltage:	220 to 240 V
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Suitable for lamp power:	33 W
Operating device:	LED operating device current-controlled
Beam angle:	medium beam 21-40°
Impact resistance:	IK06
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	other
Suitable for number of light sources:	1
Luminous flux:	2150 lm
Covering of the luminaire with thermal insulation material possible:	yes
Voltage type:	AC
Light color:	other
Suitable for track mounting:	yes
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Distortion factor (THD):	0.20
Protection class (NEMA):	other
Rated ambient temperature according to IEC 62722-2-1:	25 °C
Type of wiring:	Termination
Power factor:	0.90
Number of poles:	5
Connection type:	Busbar adapter
Luminaire luminous efficacy:	66 lm/W
Suitable for computer workstations according to EN 12464-1:	yes
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM3
Replaceable operating device:	yes
Dimming DALI-2:	no
Luminous flux maintenance at Average service life of 50,000 hours at 25 °C ambient temp.:	90 %
Failure rate for average service life of 50,000 hours at 25 °C ambient temp. (tq):	10 %
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable luminous flux:	no
Adjustable beam angle:	no
Max. Number of luminaires circuit breaker B16:	34
Max. Number of lights circuit breaker C16:	57
Integrated emergency power supply:	no
IFTTT support available:	no
Glare limitation (UGR):	12.30
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

Total harmonic distortion (THD)0.20

Rated luminous flux2150 lm

HABDeecos LED/33W-fresh meat D123,R.mi

Manufacturer

HAN742228.002

GTIN4051859853398

Covering the luminaire with thermal insulation material possibleYes

Connection typeBusbar adapter

Type of wiringDiploma

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceYes

Outer diameter123 mm

Rated ambient temperature according to IEC 62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Glare limitation (UGR)12.30

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature adjustableNo

VersionWithout

Suitable for number of light sources1

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power33W

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingYes

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth200 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.90

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy66lm/W

LampsLED not replaceable

Light emissionDirect

Light colorOther

Luminous flux2150lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.90 %

Light distributorReflector

Light distributionSymmetrical

Max. number of luminaires Circuit breaker B1634

Max. number of luminaires Circuit breaker C1657

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles5

ReflectorOther

Impact resistanceIK06

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

System performance33W

AdjustabilityRotatable and pivotable

Housing materialAluminum
