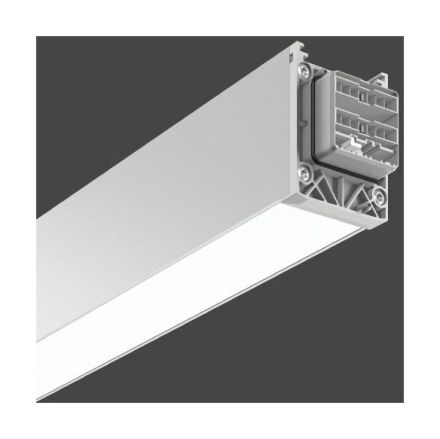

RZB 9512OF.830.500.000 Linedo 21W 3000K 1163 opal 5-pin. LED strip light

RZB 9512OF.830.500.000 Linedo 21W 3000K 1163 opal 5-pin. LED strip light

In stock

SKU: 725989

Price on request

€186.52

€0

Overview

Quick-assembly complete module for universal use as a light strip. System profile made of extruded aluminum profile, anodized. Highly efficient LED units with flush opal diffuser made of non-yellowing PMMA. Simple and tool-free assembly of system profiles using separate accessories for rope, chain or ceiling suspension. Can be plugged in without tools and secured by a mechanical connector. 5-pin LINEDO plug (5 x 2.5 mm²). Easy selection of phase setting from the outside thanks to the patented system. Please order feed-in module, connection and assembly accessories separately. Luminaires with limited surface temperature according to DIN EN 60598-2-24 for use in an environment in which a deposit of non-conductive dust on the luminaire can be expected.

Property	Value
Suitable for number of lamps:	2
Rated luminous flux according to IEC 62722-2-1:	2850 lm
Color temperature:	3000 K
With lamp:	yes
Operating device:	LED operating device current-controlled
Length:	1163 mm
Width:	58 mm
Height/depth:	76 mm
Protection rating (IP):	IP54
Protection class:	I
Light distribution:	symmetrical
Light emission:	direct
Suitable for emergency lighting:	yes
Housing material:	Aluminium
Housing color:	Aluminium
Color rendering index CRI:	80-89
With operating device:	yes
Reflector:	without
Socket:	without
Nominal voltage:	220 to 240 V
Light source:	LED not replaceable
Light color:	white
Voltage type:	AC/DC
LED nominal current at constant current:	88 to 95 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming manufacturer-specific:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	without
Beam angle:	extremely wide beam >80°
Rated service life L80/B10 at 25 °C:	80000 h
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	21 W
Max. System power:	21 W
Power factor:	0.98
Wiring type:	with through wiring
Number of poles:	5

Characteristics

HABLinedo 21W 3000K 1163 opal 5-pin

Manufacturer

HAN9512OF.830.500.000

GTIN4051859554431

Type of wiringWith through wiring

Rated lifetime L80/B10 at 25 °C80000 hours

Rated luminous flux according to IEC 62722-2-12850lm

Operating deviceLED control gear current controlled

Width58 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power21 W

Suitable for number of lamps2

Suitable for emergency lightingYes

Housing colorAluminum

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth76 mm

LED nominal current at constant current88 to 95 mA

Power factor0.98

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Length1163 mm

Max. system performance21 W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles5

ReflectorWithout

IP protection)IP54

Protection classI

Voltage typeAC/DC

Housing materialAluminum
