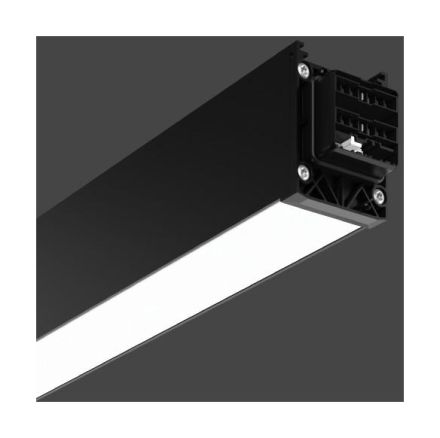

RZB 9512OF.843.500.001 Linedo 31W 4000K 1163 opal 5-pin LED strip light

RZB 9512OF.843.500.001 Linedo 31W 4000K 1163 opal 5-pin LED strip light

In stock

SKU: 727773

Price on request

€214.57

€0

Overview

Quick-assembly complete module for universal use as a light strip. System profile made of extruded aluminum profile, powder-coated. Highly efficient LED units with flush opal diffuser made of non-yellowing PMMA. Simple and tool-free assembly of system profiles using separate accessories for rope, chain or ceiling suspension. Can be plugged in without tools and secured by a mechanical connector. 5-pin LINEDO plug (5 x 2.5 mm²). Easy selection of phase setting from the outside thanks to the patented system. Please order feed-in module, connection and assembly accessories separately. Luminaires with limited surface temperature according to DIN EN 60598-2-24 for use in an environment in which a deposit of non-conductive dust on the luminaire can be expected.

Property	Value
Suitable for number of lamps:	2
Rated luminous flux according to IEC 62722-2-1:	4400 lm
Color temperature:	4000 K
With lamp:	yes
Operating device:	LED operating device current-controlled
Length:	1163 mm
Width:	58 mm
Height/depth:	76 mm
Protection rating (IP):	IP54
Protection class:	I
Light distribution:	symmetrical
Light emission:	direct
Suitable for emergency lighting:	yes
Housing material:	Aluminum
Housing color:	black
Color rendering index CRI:	80-89
With operating device:	yes
Reflector:	without
Socket:	without
Nominal voltage:	220 to 240 V
Light source:	LED not replaceable
Light color:	white
Voltage type:	AC/DC
LED nominal current at constant current:	133 to 145 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming manufacturer-specific:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	without
Beam angle:	extremely wide beam >80°
Rated service life L80/B10 at 25 °C:	80000 h
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	32 W
Max. System power:	32 W
Power factor:	0.98
Wiring type:	with through-wiring
Number of poles:	5

Characteristics

HABLinedo 31W 4000K 1163 opal 5-pin

Manufacturer

HAN9512OF.843.500.001

GTIN4051859555193

Type of wiringWith through wiring

Rated lifetime L80/B10 at 25 °C80000 hours

Rated luminous flux according to IEC 62722-2-14400lm

Operating deviceLED control gear current controlled

Width58 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power32W

Suitable for number of lamps2

Suitable for emergency lightingYes

Housing colorBlack

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth76 mm

LED nominal current at constant current133 to 145 mA

Power factor0.98

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Length1163 mm

Max. system performance32W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles5

ReflectorWithout

IP protection)IP54

Protection classI

Voltage typeAC/DC

Housing materialAluminum
