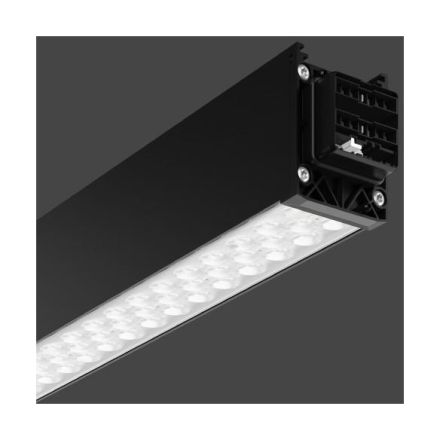

RZB 952390.853.400.004 Linedo 137W 5000K 2291 90° 14-pin LED strip light

RZB 952390.853.400.004 Linedo 137W 5000K 2291 90° 14-pin LED strip light

In stock

SKU: 724910

HAB:Linedo 137W 5000K 2291 90° 14-pin.

Manufacturer:RZB

HAN:952390.853.400.004

GTIN:4051859595243

Type of wiring:With through wiring

All specifications

Price on request

€406.43

€0

Into a basketIn the basketGo

Overview

Quick-assembly complete module for universal use as a light strip. System profile made of extruded aluminum profile, powder-coated. Highly efficient LED units with optimal light control through precise lens optics made of clear plastic (PC). Wide beam light distribution. Simple and tool-free assembly of system profiles using separate accessories for rope, chain or ceiling suspension. Can be plugged in without tools and secured by a mechanical connector. 14-pin LINEDO connector (5 x 2.5 mm² / 9 x 1.5 mm²) for additional applications in light management or for the integration of emergency lighting. Simple selection of phase setting from the outside thanks to the patented system. Please order feed-in module, connection and assembly accessories separately. Luminaires with limited surface temperature according to DIN EN 60598-2-24 for use in an environment in which a deposit of non-conductive dust on the luminaire can be expected.

Property	Value
Suitable for number of lamps:	4
Rated luminous flux according to IEC 62722-2-1:	20800 lm
Color temperature:	5000 K
With lamp:	yes
Operating device:	LED operating device current-controlled
Length:	2291 mm
Width:	58 mm
Height/depth:	76 mm
Protection rating (IP):	IP54
Protection class:	I
Light distribution:	symmetrical
Light emission:	direct
Suitable for emergency lighting:	yes
Housing material:	Aluminum
Housing color:	black
Color rendering index CRI:	80-89
With operating device:	yes
Reflector:	without
Socket:	without
Nominal voltage:	220 to 240 V
Light source:	LED not replaceable
Light color:	white
Voltage type:	AC/DC
LED nominal current at constant current:	571 to 623 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming manufacturer-specific:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	without
Beam angle:	extremely wide beam >80°
Rated service life L80/B10 at 25 °C:	80000 h
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Suitable for lamp power:	137 W
Max. System power:	137 W
Power factor:	0.98
Wiring type:	with through wiring
Number of poles:	14
