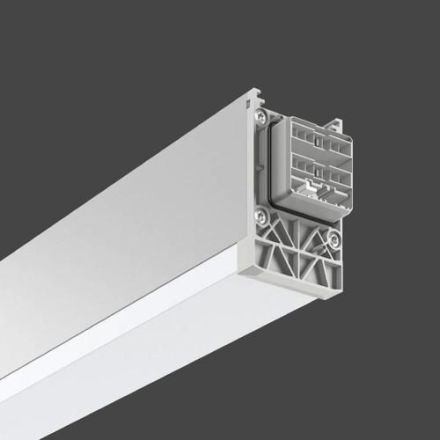

HABLinedo.LED/90W-827-865,2291,opal,7pin
HAN9523OH.800.776.010
GTIN4051859963998
Type of wiringWith through wiring
Beam angleFree-radiating/diffuse
Beam angle adjustableNo
Replaceable operating deviceYes
Rated lifetime L80/B10 at 25 °C80000 hours
Operating deviceLED control gear current controlled
Width58 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color consistency (McAdam ellipse)SDCM3
Color temperature2700 to 6500 K
Color temperature adjustableContinuously variable
Color rendering index CRI80-89
VersionWithout
Suitable for number of light sources8
Suitable for lamp power86 to 90 W
Suitable for emergency lightingNo
Housing colorAluminum
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth90.80 mm
Constant luminous flux controlYes
Power factor0.98
Luminaire luminous efficacy100lm/W
LampsLED not replaceable
Light emissionDirect
Light colorMulticolored
Luminous flux9000lm
Luminous flux adjustableNo
Light distributorWithout
Light distributionSymmetrical
Length2291 mm
Max. system performance90W
With operating deviceYes
With light sourceYes
Nominal voltage220 to 240 V
Rated current375 to 409 mA
Emergency power supply integratedNo
Without dimming functionNo
Number of poles7
ReflectorWithout
IP protection)IP54
Protection classI
Voltage typeAC/DC
Housing materialAluminum
