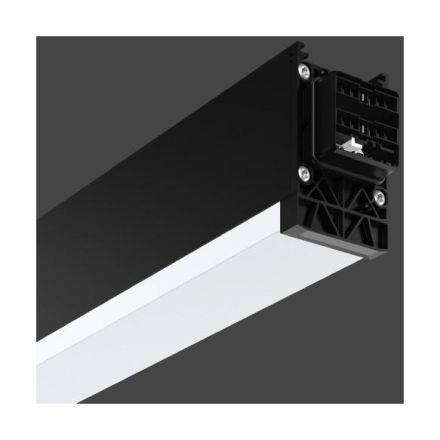

RZB 9545OH.833.776.002 Linedo 168W 3000K 4547 opal 7-pin. LED strip light

RZB 9545OH.833.776.002 Linedo 168W 3000K 4547 opal 7-pin. LED strip light

In stock

SKU: 725109

Price on request

€702.03

€0

Overview

Quick-assembly complete module for universal use as a light strip. System profile made of extruded aluminum profile, powder-coated. Highly efficient LED units with opal diffuser profile made of non-yellowing PMMA with increased indirect component. Simple and tool-free assembly of system profiles using separate accessories for rope, chain or ceiling suspension. Can be plugged in without tools and secured by a mechanical connector. 7-pin LINEDO plug (5 x 2.5 mm² / 2 x 1.5 mm²). Easy selection of phase setting from the outside thanks to patented system. Please order feed-in module, connection and assembly accessories separately. Luminaires with limited surface temperature according to DIN EN 60598-2-24 for use in an environment in which a deposit of non-conductive dust on the luminaire can be expected.

d>no

Property	Value
Suitable for number of lamps:	8
Rated luminous flux according to IEC 62722-2-1:	22800 lm
Color temperature:	3000 K
With lamp:	yes
Operating device:	LED operating device current-controlled
Length:	4547 mm
Width:	58 mm
Height/Depth:	90.80 mm
Protection rating (IP):	IP54
Protection class:	I
Light distribution:	symmetrical
Light emission:	direct
Suitable for emergency lighting:	no
Housing material:	Aluminum
Housing color:	black
Color rendering index CRI:	80-89
With operating device:	yes
Reflector:	without
Socket:	without
Nominal voltage:	220 to 240 V
Light source:	LED not replaceable
Light color:	white
Voltage type:	AC/DC
LED nominal current at constant current:	700 to 764 mA
Dimming 0-10 V:
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming manufacturer-specific:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	without
Beam angle:	free-beaming/diffuse
Rated service life L80/B10 at 25 °C:	80000 h
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	168 W
Max. System power:	168 W
Power factor:	0.98
Wiring type:	with through wiring
Number of poles:	7

Characteristics

HABLinedo 168W 3000K 4547 opal 7-pin

Manufacturer

HAN9545OH.833.776.002

GTIN4051859548478

Type of wiringWith through wiring

Beam angleFree-radiating/diffuse

Rated lifetime L80/B10 at 25 °C80000 hours

Rated luminous flux according to IEC 62722-2-122800lm

Operating deviceLED control gear current controlled

Width58 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power168W

Suitable for number of lamps8

Suitable for emergency lightingNo

Housing colorBlack

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth90.80 mm

LED nominal current at constant current700 to 764 mA

Power factor0.98

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Length4547 mm

Max. system performance168W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionNo

Number of poles7

ReflectorWithout

IP protection)IP54

Protection classI

Voltage typeAC/DC

Housing materialAluminum
