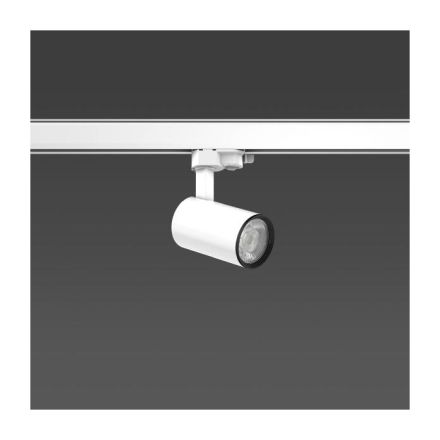

RZB 742130.002.1 Calido Clickbeam Midi, 25/25W 1950/2000 LED track spotlight

RZB 742130.002.1 Calido Clickbeam Midi, 25/25W 1950/2000 LED track spotlight

In stock

SKU: 722801

Price on request

€88.39

€0

Overview

LED surface-mounted spotlight with a modern design in a cylinder shape without visible cooling fins. Housing made of extruded aluminum profile, powder-coated. Cover and lever arm made of plastic. Can be rotated 356° horizontally and pivoted 90° vertically. Thermo-resistant black plastic ring. Hybrid optics system with polycarbonate lens and faceted aluminum reflector for particularly homogeneous illumination. Special click beam lens suitable for different beam angles. Lens position adjustable using a pressure mechanism to set the beam angle. Black front ring for lateral glare control. UVA and IR-free light. With multi-adapter for 3-phase power tracks 230 V. Suitable for power tracks on the ceiling. Control gear integrated in the luminaire housing. Accessory that can be mounted without tools: honeycomb grid.

Property	Value
Max. System power:	25 W
Rated luminous flux according to IEC 62722-2-1:	1950 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	65 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Height/depth:	164 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	25 W
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	LED operating device current-controlled
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	other
Suitable for number of bulbs:	1
Luminous flux:	1950 lm
Cover material:	other
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC
Light color:	white
Suitable for track mounting:	yes
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for Cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	104 to 114 mA
Dimming depending on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
DMX dimming:	no
DSI dimming:	no
Potentiometer dimming (device-integrated):	no
GPRS dimming:	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	25 °C
Type of wiring:	Termination
Power factor:	0.90
Number of poles:	3
Luminous efficacy:	78 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	850 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM3

Characteristics

HABCalido Clickbeam Midi, 25/25W 1950/2000

Manufacturer

HAN742130.002.1

GTIN4051859364412

Covering the luminaire with thermal insulation material possibleYes

Type of wiringDiploma

Outer diameter65 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11950lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power25W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingYes

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth164 mm

LED nominal current at constant current104 to 114 mA

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy78lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1950lm

Light distributorReflector

Light distributionSymmetrical

Max. system performance25W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

ReflectorOther

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityRotatable and pivotable

Cover materialOther

Housing materialAluminum
