RZB 742152.004.730 Deecos 15W-2700K Ra92 D60 H135 LED track spotlight

RZB 742152.004.730 Deecos 15W-2700K Ra92 D60 H135 LED track spotlight

In stock

SKU: 897660

Price on request

€227.98

€0

Overview

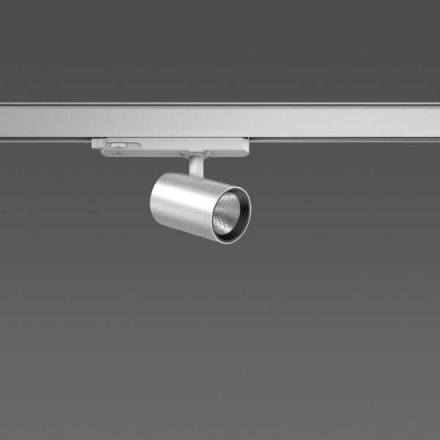

LED surface-mounted spotlight in a modern design without visible cooling fins. Die-cast aluminum housing, powder-coated. Can be rotated 356° horizontally and pivoted 90° vertically. Black plastic ring with recessed LED for lateral glare control. Optical assembly that can be changed without tools with reflector made of MIRO-Silver with 98% total light reflection for excellent efficiency. Best color rendering Ra>90. With multi-adapter for 3-phase power rails 230 V. Suitable for power rail on ceiling, power rail on wall. Track-in converter integrated in the adapter. Operating device with the best properties in terms of flicker-free operation and stroboscopic effect. With Casambi smart+free Bluetooth® control for wireless networking and operation using an Android / iOS device, free app available for download. Accessories that can be mounted without tools: interchangeable optics, decorative glasses, honeycomb grids, clear and frosted cover plates, white plastic ring for interchangeability.

Property	Value
Max. System power:	16 W
Rated luminous flux according to IEC 62722-2-1:	1550 lm
Housing color:	Silver
Protection class (IP):	IP20
Outer diameter:	60 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Height/depth:	110 mm
With motion detector:	no
Color temperature:	2700 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	16 W
Beam angle:	narrow beam 11-20°
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	LED operating device current-controlled
Impact resistance:	IK06
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	other
Suitable for number of bulbs:	1
Luminous flux:	1550 lm
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC
Light color:	white
Suitable for track mounting:	yes
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	67 to 73 mA
Dimming depending on the operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	yes
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Light distributor:	reflector
Light emission:	direct
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	25 °C
Type of wiring:	termination
Power factor:	0.97
Number of poles:	2
Luminous efficacy:	97 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	yes
Glow wire test in accordance with IEC 60695-2-11:	650 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM2

Characteristics

HABDeecos 15W-2700K Ra92 D60 H135

Manufacturer

HAN742152.004.730

GTIN4051859738275

Covering the luminaire with thermal insulation material possibleYes

Type of wiringDiploma

Beam angleNarrow beam 11-20°

Outer diameter60 mm

Rated luminous flux according to IEC 62722-2-11550lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificYes

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM2

Color temperature2700K

Color rendering index CRI90-100

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power16W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingYes

Suitable for truss mountingNo

Housing colorSilver

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth110 mm

LED nominal current at constant current67 to 73 mA

Power factor0.97

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy97lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1550lm

Light distributorReflector

Light distributionSymmetrical

Max. system performance16W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG1

Number of poles2

ReflectorOther

Impact resistanceIK06

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityRotatable and pivotable
