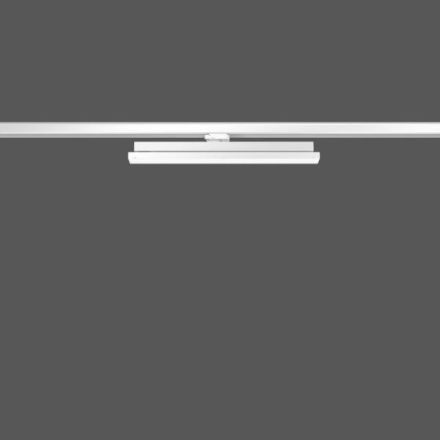

RZB 742160.002.2.76 TX-Move 33W-927 569x57x77 LED track spotlight

RZB 742160.002.2.76 TX-Move 33W-927 569x57x77 LED track spotlight

In stock

SKU: 897265

Price on request

€191.30

€0

Overview

Multifunctional surface-mounted spotlight for area lighting. Very flat design. Housing made of powder-coated sheet steel. Can be rotated 356° horizontally and pivoted 90° vertically. Scaling of the pivot angle. Highly efficient LED units with flush opal diffuser made of non-yellowing PMMA. Symmetrical wide-beam light distribution. Best color rendering thanks to CRI>90 for fresh produce and colored textiles. With adapter for RZB 3-phase DALI power tracks. Suitable for power tracks on the ceiling. MultiLumen: Luminaire luminous flux can be adjusted in 3 levels. Factory-preset to the highest luminaire luminous flux. Environmentally friendly and resource-saving thanks to replaceable components.

Property	Value
Max. System power:	33 W
Rated luminous flux according to IEC 62722-2-1:	1700 lm
Housing color:	white
Protection class (IP):	IP20
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	569 mm
Width:	57 mm
Height/depth:	77 mm
With motion detector:	no
Color temperature:	2700 K
Nominal voltage:	220 to 240 V
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for lamp power:	18 to 33 W
Beam angle:	extremely wide beam >80°
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	EVG
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of bulbs:	1
Luminous flux:	1700 lm
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC
Light color:	white
Suitable for track mounting:	yes
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	75 to 82 mA
Dimming depending on the operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming ometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	without
Light emission:	direct
Total harmonic distortion (THD):	0.20
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	5 to 25 °C
Type of wiring:	Termination
Power factor:	0.90
Luminaire luminous efficacy:	95 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	850 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM3

Characteristics

Total harmonic distortion (THD)0.20

HABTX Move 33W-927 569x57x77

Manufacturer

HAN742160.002.2.76

GTIN4051859756842

Covering the luminaire with thermal insulation material possibleYes

Type of wiringDiploma

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11700lm

Rated ambient temperature according to IEC62722-2-15 to 25 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width57 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature2700K

Color rendering index CRI90-100

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power18 to 33 W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingYes

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth77 mm

LED nominal current at constant current75 to 82 mA

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy95lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1700lm

Light distributorWithout

Light distributionSymmetrical

Length569 mm

Max. system performance33W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG1

ReflectorWithout

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilityRotatable and pivotable
