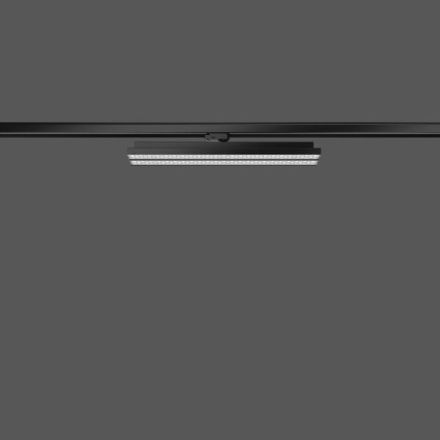

RZB 742161.003.2 TX-Move 62W-927 569x119x75 30° LED track spotlight

RZB 742161.003.2 TX-Move 62W-927 569x119x75 30° LED track spotlight

In stock

SKU: 897674

Price on request

€220.88

€0

Overview

Multifunctional surface-mounted spotlight for area lighting. Very flat design. Housing made of powder-coated sheet steel. Can be rotated 356° horizontally and pivoted 90° vertically. Scaling of the pivot angle. Highly efficient LED units with optimal light control thanks to precise lens optics made of clear plastic (PC). Special microstructures reduce yellow fringing. Symmetrical light distribution. Best color rendering thanks to CRI>90 for fresh produce and colored textiles. With multi-adapter for 3-phase 230 V power tracks. Suitable for power tracks on the ceiling. MultiLumen: The luminous flux of the luminaire can be adjusted in 3 levels. Factory-set to the highest luminous flux. Environmentally friendly and resource-saving thanks to replaceable components. Very good glare control, ideal for the checkout area.

d>no

Property	Value
Max. System power:	62 W
Rated luminous flux according to IEC 62722-2-1:	4250 lm
Housing color:	black
Protection class (IP):	IP20
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	569 mm
Width:	119 mm
Height/depth:	75 mm
With motion detector:	no
Color temperature:	2700 K
Nominal voltage:	220 to 240 V
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for lamp power:	38 to 62 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK04
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of lamps:	2
Luminous flux:	4250 lm
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC
Light colour:	white
Suitable for track mounting:	yes
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for traverse mounting:	no
With Light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	158 to 173 mA
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	without
Light output:	direct
Total harmonic distortion (THD):	0.20
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	5 to 25 °C
Type of wiring:	Termination
Power factor:	0.90
Luminaire luminous efficacy:	112 lm/W
Suitable for computer workstations according to EN 12464-1:	yes
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM3

Characteristics

Total harmonic distortion (THD)0.20

HABTX-Move 62W-927 569x119x75 30°

Manufacturer

HAN742161.003.2

GTIN4051859755296

Covering the luminaire with thermal insulation material possibleYes

Type of wiringDiploma

Beam angleMedium beam 21-40°

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-14250lm

Rated ambient temperature according to IEC62722-2-15 to 25 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width119 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature2700K

Color rendering index CRI90-100

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power38 to 62 W

Suitable for number of lamps2

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingYes

Suitable for truss mountingNo

Housing colorBlack

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth75 mm

LED nominal current at constant current158 to 173 mA

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy112lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux4250lm

Light distributorWithout

Light distributionSymmetrical

Length569 mm

Max. system performance62W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

ReflectorWithout

Impact resistanceIK04

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilityRotatable and pivotable

RZB 742161.003.2 TX-Move 62W-927 569x119x75 30° LED track spotlight
