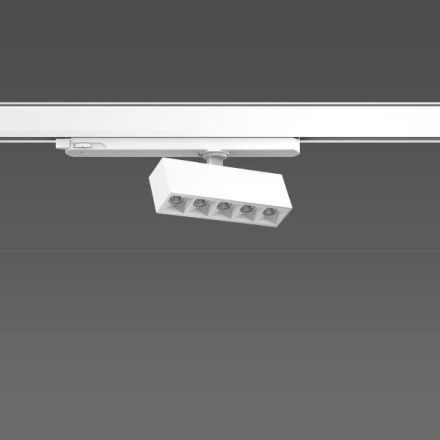

RZB 742168.0025.1 BeamLine Slim 13W-3000K LED track spotlight

RZB 742168.0025.1 BeamLine Slim 13W-3000K LED track spotlight

In stock

SKU: 898090

Price on request

€106.73

€0

Overview

Linear surface-mounted spotlight for aesthetically sophisticated lighting. Powder-coated metal housing. Perfect thermal management using an aluminum heat sink. Can be rotated 356° horizontally and pivoted 90° vertically. LED light unit with MRS technology: mini reflector system made of metallized thermoplastic with prism-shaped white anti-glare frame for pleasant, glare-free light (UGR < 10). Medium-wide light distribution. With multi-adapter for 3-phase power tracks 230 V. Suitable for power track on the ceiling, power track on the wall. Operating device integrated in the adapter.

Property	Value
Max. System power:	14 W
Rated luminous flux according to IEC 62722-2-1:	1000 lm
Housing color:	white
Protection class (IP):	IP20
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	145 mm
Width:	35 mm
Height/depth:	80 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for lamp power:	14 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK06
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	other
Suitable for number of bulbs:	1
Luminous flux:	1000 lm
Covering of the lamp with thermal insulation material possible:	yes
Type of voltage:	AC
Light color:	white
Suitable for track mounting:	yes
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	58 to 64 mA
Dimming depending on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Total harmonic distortion (THD):	0.20
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-20 to 30 °C
Wiring type:	Termination
Power factor:	0.92
Number of poles:	2
Luminaire luminous efficacy:	72 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	yes
Photobiological safety in accordance with EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM3

Characteristics

Total harmonic distortion (THD)0.20

HABBeamLine Slim 13W-3000K

Manufacturer

HAN742168.0025.1

GTIN4051859744122

Covering the luminaire with thermal insulation material possibleYes

Type of wiringDiploma

Beam angleMedium beam 21-40°

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11000lm

Rated ambient temperature according to IEC62722-2-1-20 to 30 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width35 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color rendering index CRI90-100

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power14W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingYes

Suitable for truss mountingNo

Housing colorWhite

Height/Depth80 mm

LED nominal current at constant current58 to 64 mA

Power factor0.92

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy72lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1000lm

Light distributorReflector

Light distributionSymmetrical

Length145 mm

Max. system performance14W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

ReflectorOther

Impact resistanceIK06

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityRotatable and pivotable
