RZB 742182.003 Deecos 47W-3000K Ra92 D123 LED track spotlight

RZB 742182.003 Deecos 47W-3000K Ra92 D123 LED track spotlight

In stock

SKU: 898294

Price on request

€207.72

€0

Overview

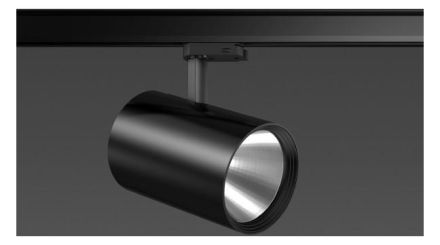

LED surface-mounted spotlight in a modern design with no visible cooling fins. Powder-coated die-cast aluminum housing. Can be rotated 356° horizontally and pivoted 90° vertically. Black plastic ring with recessed LED to reduce glare at the sides. Optics assembly that can be changed without tools with reflector made of MIRO-Silver with 98% total light reflection for excellent efficiency. Operating device with the best properties in terms of flicker-free operation and stroboscopic effect. With multi-adapter for 3-phase 230 V power rails. Suitable for power rails on the ceiling and power rails on the wall. Best color rendering Ra>90. Accessories that can be mounted without tools: interchangeable optics, decorative glasses, honeycomb grids, clear and frosted cover plates, white plastic ring for changing.

Property	Value
Max. System power:	43 W
Rated luminous flux according to IEC 62722-2-1:	4950 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	123 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Height/depth:	200 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	43 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	LED operating device current-controlled
Impact resistance:	IK06
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	other
Suitable for number of bulbs:	1
Luminous flux:	4950 lm
Covering of the luminaire with thermal insulation material possible:	yes
Voltage type:	AC
Light color:	white
Suitable for track mounting:	yes
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	179 to 195 mA
Dimming depending on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
DMX dimming:	no
DSI dimming:	no
Potentiometer dimming (device-integrated):	no
GPRS dimming:	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Total harmonic distortion (THD):	0.10
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	25 °C
Type of wiring:	Termination
Power factor:	0.90
Number of poles:	2
Luminous efficacy:	116 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	yes
Glow wire test in accordance with IEC 60695-2-11:	650 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM2

Characteristics

Total harmonic distortion (THD)0.10

HABDeecos 47W-3000K Ra92 D123

Manufacturer

HAN742182.003

GTIN4051859751182

Covering the luminaire with thermal insulation material possibleYes

Type of wiringDiploma

Beam angleMedium beam 21-40°

Outer diameter123 mm

Rated luminous flux according to IEC 62722-2-14950lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM2

Color temperature3000K

Color rendering index CRI90-100

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power43W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingYes

Suitable for truss mountingNo

Housing colorBlack

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth200 mm

LED nominal current at constant current179 to 195 mA

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy116lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux4950lm

Light distributorReflector

Light distributionSymmetrical

Max. system performance43W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

ReflectorOther

Impact resistanceIK06

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilityRotatable and pivotable

Housing materialAluminum
