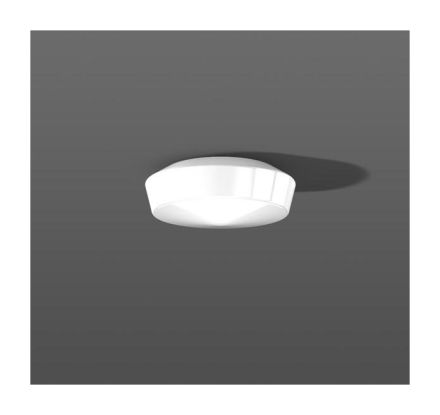

HAB2x9,1W 3000K D300 H115 DKN white
HAN10138.002.1
GTIN4051859069287
Covering the luminaire with thermal insulation material possibleYes
Connection typeScrew terminal
Type of wiringSuitable for through wiring
Execution of the gridWithout
Outer diameter300 mm
Rated lifetime L70/B50 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-1940lm
Rated ambient temperature according to IEC62722-2-125°C
Operating deviceNot required
Suitable for computer workstations according to EN 12464-1Yes
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for lamp power12W
Suitable for number of lamps2
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorWhite
Glow wire test according to IEC 60695-2-11960 °C - 30 s
Height/Depth115 mm
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy79lm/W
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributorWithout
Light distributionSymmetrical
Max. system performance12W
With operating deviceNo
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles3
Impact resistanceIK02
IP protection)IP40
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialGlass opal
Housing materialSteel
