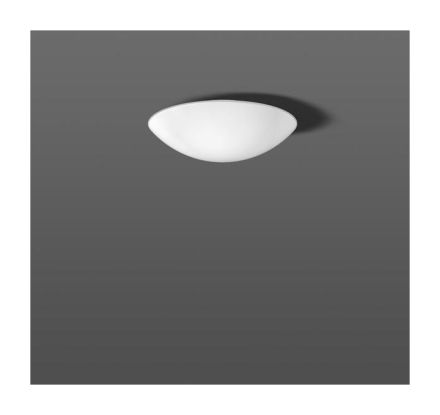

RZB 211400.002.1.19 Flat Basic 13.5W 4000K D420 HF Master LED wall / ceiling light

RZB 211400.002.1.19 Flat Basic 13.5W 4000K D420 HF Master LED wall / ceiling light

In stock

SKU: 531037

Price on request

€243.86

€0

Overview

Very extensive range of ceiling and wall lights for interiors. Hand-blown three-layer opal glass (triplex glass), satin finish. The triplex glass ensures particularly homogeneous, soft and glare-free light. In numerous diameters from 200 to 630 mm. Master light (MA). Plastic bracket. Cover attached using a spring system. Cover made of opal glass, satin finish, hand-blown. With HF motion detector. IP43 ceiling mounting, IP44 wall mounting., HF detector 24 GHz with integrated corridor function, detection range 130°, easy setting of the functions via 3 assigned push switches, sensitivity / range max. 5 m radial, adjustable from 10% to 100%, time control 3 seconds to 15 minutes adjustable in 8 levels, daylight detection via 5 brightness levels and learn-in mode adjustable, up to 9 associated slave lights can be operated on one master light (max. up to 150 W / 230 W), only suitable to a limited extent for outdoor use due to sensitive reaction to all movements, energy efficiency class A+, A+A+

Property	Value
Max. System power:	12 W
Rated luminous flux according to IEC 62722-2-1:	1200 lm
Suitable for number of lamps:	1
Height/depth:	124 mm
Protection rating (IP):	IP43
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	plastic
Color temperature:	4000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Outer diameter:	420 mm
Voltage type:	AC
With motion detector:	yes
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	no
Cover material:	opal glass
Light distributor:	without
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Covering the lamp with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming Trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Suitable for lamp power:	12 W
Luminaire luminous efficacy:	100 lm/W
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross section:	2.50 mm²

Characteristics

HABFlat Basic 13,5W 4000K D420 HF Master

Manufacturer

HAN211400.002.1.19

GTIN4051859187523

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Outer diameter420 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11200lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power12W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth124 mm

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy100lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance12W

With operating deviceNo

With motion detectorYes

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles3

Impact resistanceIK02

IP protection)IP43

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialGlass opal

Housing materialPlastic

RZB 211400.002.1.19 Flat Basic 13.5W 4000K D420 HF Master LED wall / ceiling light
