RZB 211421.002.1 10.3W 4000K 220x120x105 LED wall / ceiling light

RZB 211421.002.1 10.3W 4000K 220x120x105 LED wall / ceiling light

In stock

SKU: 529069

Price on request

€116.04

€0

Overview

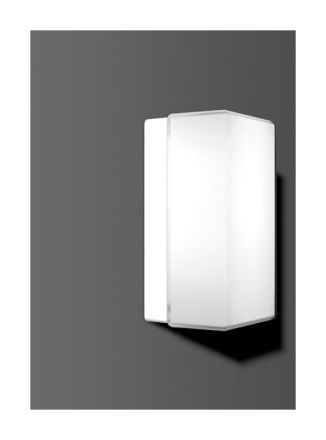

Rectangular surface-mounted light in a classic design. Plastic fitting. Hand-blown opal glass, satin matt. Glass fastening with spring system. Suitable for ceiling mounting, wall mounting. IP 43 ceiling mounting, IP 44 wall mounting.

Property	Value
Max. System power:	9 W
Rated luminous flux according to IEC 62722-2-1:	850 lm
Suitable for number of lamps:	1
Length:	220 mm
Width:	120 mm
Height/depth:	105 mm
Protection rating (IP):	IP43
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	plastic
Color temperature:	4000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	49000 h
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-25 to 32 °C
Socket:	other
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	opal glass
Light distributor:	without
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With Air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Suitable for lamp power:	9 W
Luminaire luminous efficacy:	95 lm/W
Power factor:	0.96
Wiring type:	suitable for through wiring
Number of poles:	2
Conductor cross-section:	2.50 mm²

Characteristics

HAB10.3W 4000K 220x120x105

Manufacturer

HAN211421.002.1

GTIN4051859144168

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Rated lifetime L80/B10 at 25 °C49000 hours

Rated luminous flux according to IEC 62722-2-1850lm

Rated ambient temperature according to IEC62722-2-1-25 to 32 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width120 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power9W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth105 mm

Power factor0.96

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy95lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Length220 mm

Max. system performance9W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles2

Impact resistanceIK02

IP protection)IP43

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialGlass opal

Housing materialPlastic
