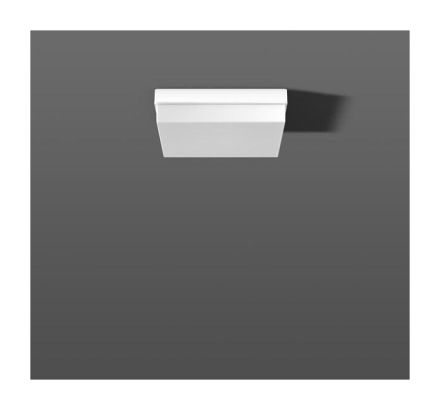

RZB 221160.002.1 12.5W 4000K 270x270x70 LED wall / ceiling light

In stock
SKU: 527010
€123.57
Into a basketIn the basketGo

Overview

Versions with a high protection class allow outdoor use. Indoors, it prevents contamination from flies or dust, making it perfect for installations that are difficult to reach. Diffusers in hand-blown opal glass, satin matt or made of impact-resistant plastic (PP). Flat design. Diffuser fastening with spring system. Plastic bracket. Cover fastening with spring system. Cover in opal plastic, satin matt. IP43 ceiling mounting, IP44 wall mounting. Energy efficiency class A+, A+A+

Property Value
Max. System power: 11 W
Rated luminous flux according to IEC 62722-2-1: 790 lm
Suitable for number of lamps: 1
Length: 270 mm
Width: 270 mm
Height/depth: 70 mm
Protection rating (IP): IP43
Protection class: I
Luminaire with limited surface temperature 'D-mark': no
Nominal voltage: 220 to 240 V
Housing color: white
Housing material: plastic
Color temperature: 4000 K
Impact resistance: IK06
Color rendering index CRI: 80-89
Suitable for ceiling mounting: yes
Rated service life L80/B10 at 25 °C: 50000 h
Suitable for wall mounting: yes
Voltage type: AC
With motion detector: no
Beam angle: extremely wide beam >80°
With light source: yes
Light source: LED not replaceable
Rated ambient temperature according to IEC62722-2-1: 25 °C
Socket: other
Connection type: Plug-in terminal
With operating device: yes
Cover material: Opal plastic
Light distributor: without
Without dimming function: no
Light emission: direct/indirect
Light distribution: symmetrical
With light sensor: no
Operating device: LED operating device, current-controlled
Suitable for recessed mounting: no
Light color: white
Suitable for computer workstations in accordance with EN 12464-1: no
Suitable for light strip configuration: no
Suitable for pendant suspension: no
Suitable for surface mounting: yes
Suitable for emergency lighting: no
Design of the grid: without
Covering of the luminaire with thermal insulation material possible: yes
DMX dimming: no
DSI dimming: no
With Air slots: no
Dimming LineSwitch: no
Dimming potentiometer (device integrated): no
Dimming 0-10 V: no
Dimming GPRS: no
Dimming 1-10 V: no
Dimming manufacturer-specific: no
Dimming DALI: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Dimming depending on the operating device: yes
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Suitable for lamp power: 11 W
Luminaire luminous efficacy: 72 lm/W
Type of wiring: suitable for through wiring
Number of poles: 3
Conductor cross-section: 2.50 mm²

Characteristics

HAB12.5W 4000K 270x270x70
ManufacturerRZB
HAN221160.002.1
GTIN4051859099857
Covering the luminaire with thermal insulation material possibleYes
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridWithout
Rated lifetime L80/B10 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-1790lm
Rated ambient temperature according to IEC62722-2-125°C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Width270 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for lamp power11 W
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorWhite
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth70 mm
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy72lm/W
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributorWithout
Light distributionSymmetrical
Length270 mm
Max. system performance11 W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionNo
Number of poles3
Impact resistanceIK06
IP protection)IP43
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialPlastic
