RZB 221175.002.2 HB 501 17W 1750lm white LED wall / ceiling light

In stock
SKU: 722803
€66.96
Into a basketIn the basketGo

Overview

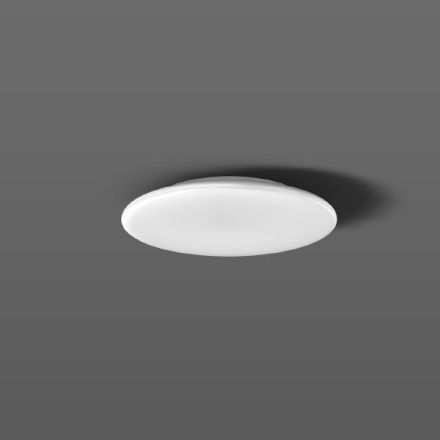

Flat, decorative, round LED surface-mounted luminaire. Housing made of plastic (polycarbonate). Diffuser made of plastic (polycarbonate), opal. Housing and diffuser firmly connected. MultiColour: colour temperature adjustable to 3000 K (factory setting), 4000 K and 5700 K using a switching element. Quick-mounting adapter made of white powder-coated sheet steel with bayonet fastening. Control gear integrated.

Property Value
Max. System power: 17 W
Rated luminous flux according to IEC 62722-2-1: 1750 lm
Suitable for number of lamps: 1
Height/depth: 48 mm
Protection rating (IP): IP40
Protection class: I
Luminaire with limited surface temperature 'D-mark': no
Nominal voltage: 220 to 240 V
Housing color: white
Housing material: plastic
Color temperature: 3000 to 5700 K
Impact resistance: IK06
Color rendering index CRI: 80-89
Suitable for ceiling mounting: yes
Suitable for wall mounting: yes
Outer diameter: 300 mm
Voltage type: AC
With motion detector: no
Beam angle: extremely wide beam >80°
With light source: yes
Light source: LED not replaceable
Rated ambient temperature according to IEC62722-2-1: -20 to 45 °C
Socket: other
Connection type: plug-in terminal
With operating device: yes
Cover material: opal plastic
Light distributor: without
Without dimming function: yes
Light emission: direct/indirect
Light distribution: symmetrical
With light sensor: no
Operating device: EVG
Suitable for recessed mounting: no
Suitable for computer workstations in accordance with EN 12464-1: no
Suitable for light strip configuration: no
Suitable for pendulum suspension: no
Suitable for surface mounting: yes
Suitable for emergency lighting: no
Design of the grid: without
Covering of the lamp with thermal insulation material possible: yes
DMX dimming: no
DSI dimming: no
With air slots: no
LineSwitch dimming: no
Potentiometer dimming (integrated in the device): no
Dimming 0-10 V: no
Dimming GPRS: no
Dimming 1-10 V: no
Dimming manufacturer-specific: no
Dimming DALI: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Dimming dependent on operating device: no
Rated service life L70/B50 at 25 °C: 40000 h
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 850 °C - 30 s
Suitable for lamp power: 17 W
Luminaire luminous efficacy: 103 lm/W
Wiring type: Termination
Number of poles: 2
Conductor cross section: 4 mm²

Characteristics

HABHB 501 17W 1750lm white
ManufacturerRZB
HAN221175.002.2
GTIN4051859426905
Covering the luminaire with thermal insulation material possibleYes
Connection typePlug-in terminal
Type of wiringDiploma
Execution of the gridWithout
Outer diameter300 mm
Rated lifetime L70/B50 at 25 °C40000 hours
Rated luminous flux according to IEC 62722-2-11750lm
Rated ambient temperature according to IEC62722-2-1-20 to 45 °C
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000 to 5700 K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for lamp power17 W
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorWhite
Glow wire test according to IEC 60695-2-11850 °C - 30 s
Height/Depth48 mm
Conductor cross-section4 mm²
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy103lm/W
LampsLED not replaceable
Light emissionDirect/indirect
Light distributorWithout
Light distributionSymmetrical
Max. system performance17 W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles2
Impact resistanceIK06
IP protection)IP40
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialPlastic
