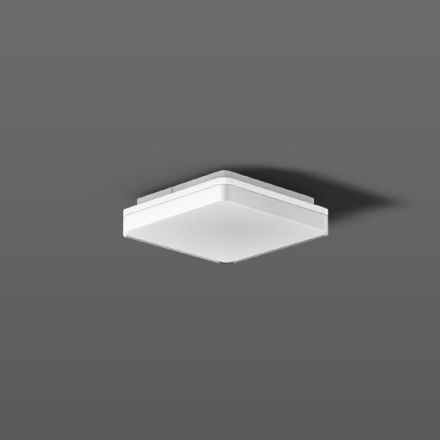

HABHB 506 15W 1350lm 830/840 white
HAN221188.002.2
GTIN4051859443896
Covering the luminaire with thermal insulation material possibleYes
Connection typePlug-in terminal
Type of wiringDiploma
Execution of the gridWithout
Beam angleFree-radiating/diffuse
Rated lifetime L70/B50 at 25 °C35000 hours
Rated luminous flux according to IEC 62722-2-11350lm
Rated ambient temperature according to IEC62722-2-1-20 to 40 °C
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1No
Width210 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000 to 4000 K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for lamp power15W
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorWhite
Glow wire test according to IEC 60695-2-11850 °C - 30 s
Height/Depth53 mm
Conductor cross-section4 mm²
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy90lm/W
LampsLED not replaceable
Light emissionDirect/indirect
Light distributorWithout
Light distributionSymmetrical
Length210 mm
Max. system performance15W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles2
Impact resistanceIK06
IP protection)IP20
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialPlastic
