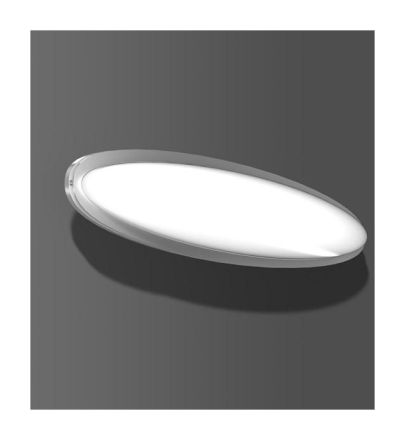

RZB 311991.004 Scapha 51W 3000K 1264x174x104 LED wall / ceiling light

In stock
SKU: 531147
€979.55
Into a basketIn the basketGo

Overview

A series of lights for interiors, consisting of: pendant lights, ceiling lights and wall lights. Hand-made glass using a countersunk process, matte on the outside and painted white on the inside. Homogeneous and glare-free illumination of the boat body through specially adapted LED surface boards. The light is clear and timeless and, as a design structure, is closely linked to the architecture. The light is available in two different sizes. Versions with smart+free Bluetooth control for wireless networking and operation using an Android / iOS device, free app available for download. Color tolerance: 3x MacAdam (3 SDCM). LED service life 50,000 h (L80, B10). Powder-coated aluminum fitting. Powder-coated sheet steel canopy and glass holder ring. Hand-made countersunk glass, matte on the outside and with white interior paint. Light source (LED) included in delivery. Energy efficiency class A++

Property Value
Max. System power: 51 W
Rated luminous flux according to IEC 62722-2-1: 3400 lm
Suitable for number of lamps: 1
Length: 1264 mm
Width: 174 mm
Height/depth: 104 mm
Protection rating (IP): IP20
Protection class: I
Luminaire with limited surface temperature 'D-mark': no
Nominal voltage: 220 to 240 V
Housing color: Silver
Housing material: Aluminum
Color temperature: 3000 K
Impact resistance: IK02
Color rendering index CRI: 80-89
Suitable for ceiling mounting: yes
Rated service life L80/B10 at 25 °C: 50000 h
Suitable for wall mounting: yes
Voltage type: AC/DC
With motion detector: no
Beam angle: free beam/diffuse
With light source: yes
Light source: LED not replaceable
Rated ambient temperature according to IEC62722-2-1: 25 °C
Socket: other
Connection type: Plug-in terminal
With operating device: yes
Cover material: opal glass
Light distributor: without
Without dimming function: yes
Light emission: direct/indirect
Light distribution: symmetrical
With light sensor: no
Operating device: LED operating device, current-controlled
Suitable for recessed mounting: no
Light color: white
Suitable for computer workstations in accordance with EN 12464-1: no
Suitable for light strip configuration: no
Suitable for pendant suspension: no
Suitable for surface mounting: yes
Suitable for emergency lighting: yes
Design of the grid: without
Covering of the luminaire with thermal insulation material possible: yes
Dimming DMX: no
Dimming DSI: no
With Air slots: no
Dimming LineSwitch: no
Dimming potentiometer (device integrated): no
Dimming 0-10 V: no
Dimming GPRS: no
Dimming 1-10 V: no
Dimming manufacturer-specific: no
Dimming DALI: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Dimming depending on the operating device: no
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 960 °C - 30 s
Suitable for lamp power: 51 W
Luminaire luminous efficacy: 67 lm/W
Power factor: 0.95
Type of wiring: suitable for through wiring
Number of poles: 3
Conductor cross-section: 1.50 mm²

Characteristics

HAB51W 3000K 1264x174x104
ManufacturerRZB
HAN311991.004
GTIN4051859155232
Covering the luminaire with thermal insulation material possibleYes
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridWithout
Beam angleFree-radiating/diffuse
Rated lifetime L80/B10 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-13400lm
Rated ambient temperature according to IEC62722-2-125°C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Width174 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for lamp power51 W
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingYes
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorSilver
Glow wire test according to IEC 60695-2-11960 °C - 30 s
Height/Depth104 mm
Power factor0.95
Conductor cross-section1.50 mm²
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy67lm/W
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributorWithout
Light distributionSymmetrical
Length1264 mm
Max. system performance51 W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles3
Impact resistanceIK02
IP protection)IP20
Protection class (NEMA)Other
Protection classI
Voltage typeAC/DC
Cover materialGlass opal
Housing materialAluminum
