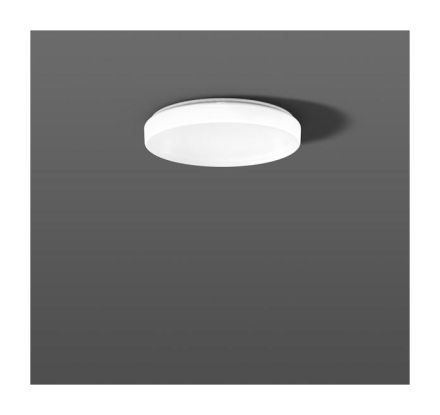

RZB 312086.002.1 Flat Polymero Circle 21W 3000K D460 H70 LED wall / ceiling light

RZB 312086.002.1 Flat Polymero Circle 21W 3000K D460 H70 LED wall / ceiling light

In stock

SKU: 529598

Price on request

€151.62

€0

Overview

Completion of the comprehensive Flat Polymero Kreis family with new flat diffusers. Homogeneous illumination through the use of LED surface modules. Extensive series consisting of: pendant lights, ceiling and wall lights. Depending on the version, high-quality polycarbonate or acrylic glass (PMMA) is available for the lamp body. PMMA diffuser: stable, scratch-resistant (replacement for glass). UV-resistant (lightfast, no yellowing). Absolutely weatherproof. PC diffuser: hard, rigid, shatter-proof, extremely impact-resistant. UV-stabilized. With patented locking technology. The lamp can be opened without tools. LED can be replaced. LED service life 50,000 hours (L70, B10). Powder-coated metal bracket. Cover attached with a snap fastener. Cover made of plastic (PMMA), opal. Energy efficiency class A+, A+A+

Property	Value
Max. System power:	19 W
Rated luminous flux according to IEC 62722-2-1:	1900 lm
Suitable for number of lamps:	1
Height/depth:	70 mm
Protection rating (IP):	IP40
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	steel
Color temperature:	3000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Outer diameter:	460 mm
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 35 °C
Socket:	other
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Opal plastic
Light distributor:	without
Without dimming function:	no
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	19 W
Luminaire luminous efficacy:	100 lm/W
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²

Characteristics

HABFlat Polymero Circle 21W 3000K D460 H70

Manufacturer

HAN312086.002.1

GTIN4051859155539

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Outer diameter460 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11900lm

Rated ambient temperature according to IEC62722-2-1-20 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power19 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth70 mm

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy100lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance19 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Number of poles3

Impact resistanceIK03

IP protection)IP40

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialSteel
