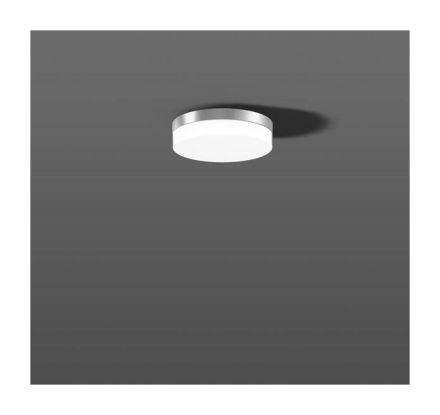

RZB 312135.004.3 Flat Slim 13W 4000K D230 H63 PC LED wall / ceiling light

RZB 312135.004.3 Flat Slim 13W 4000K D230 H63 PC LED wall / ceiling light

In stock

SKU: 531204

Price on request

€173.60

€0

Overview

Super-flat ceiling and wall lights with a choice of hand-blown opal glass or plastic diffuser. Die-cast aluminum fitting. Hand-blown three-layer opal glass (triplex glass), satin matt, or plastic diffuser (PMMA/PC), opal, satin matt. Tool-free diffuser attachment with bayonet lock. Particularly homogeneous, soft, and glare-free light through the use of AC surface boards. High protection class IP65. Condensation-free thanks to the standard Gore Protective Vents membrane valve. Extremely easy installation thanks to the plug and play plug-in system. LED module can be changed without tools. Versions with smart+free Bluetooth control for wireless networking and operation using an Android/iOS device, free app available for download. Color tolerance: 3x MacAdam (3 SDCM). LED service life 50,000 h (L70, B10). DALI and master boards suitable for direct voltage of 176 - 276 V, luminous flux in DC operation 25%. Bracket: die-cast aluminum, powder-coated. Cover attached with a bayonet lock. Cover: plastic (polycarbonate), opal, matt. Energy efficiency class A+, A+A+

>no

Property	Value
Max. System power:	11 W
Rated luminous flux according to IEC 62722-2-1:	1300 lm
Suitable for number of lamps:	1
Height/depth:	63 mm
Protection rating (IP):	IP65
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 230 V
Housing color:	Silver
Housing material:	Aluminium
Color temperature:	4000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Outer diameter:	230 mm
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 30 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Cover material:	opal plastic
Light distributor:	without
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for Pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	11 W
Luminaire luminous efficacy:	119 lm/W
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	1.50 mm²

Characteristics

HABFlat Slim 13W 4000K D230 H63 PC

Manufacturer

HAN312135.004.3

GTIN4051859176404

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Outer diameter230 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11300lm

Rated ambient temperature according to IEC62722-2-1-20 to 30 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power11 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorSilver

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth63 mm

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy119lm/W

LampsLED replaceable

Light emissionDirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance11 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 230 V

Without dimming functionNo

Number of poles3

Impact resistanceIK08

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum
