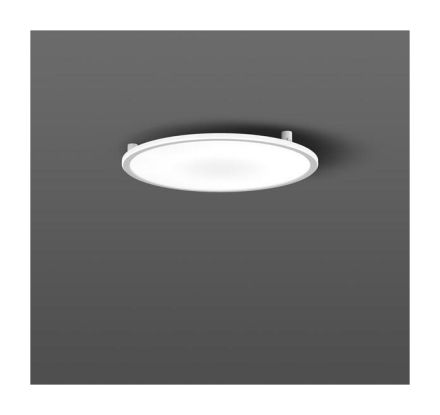

RZB 312156.002.1 Sidelite ECO 39W 4000K D580 H52 LED wall / ceiling light

RZB 312156.002.1 Sidelite ECO 39W 4000K D580 H52 LED wall / ceiling light

In stock

SKU: 529632

Price on request

€262.33

€0

Overview

Transparent and opal design. Highly economical luminaire series with progressive LED technology, consisting of ceiling, wall and pendant luminaires for indoor use. Excellently suited for office areas (UGR 19) and computer workstations (BAP) in accordance with DIN EN 12464-1. Light guide and diffuser made of non-yellowing PMMA with fine microprismatics. RZB SIDELITE technology: Lateral light coupling for above-average homogeneous luminance distribution. LED service life 50,000 h (L70, B10). Extremely low installation height (15 mm). Extremely simple converter installation using a twist-and-plug system. Luminaire frame and attachment cylinder made of powder-coated aluminum. Diffuser made of opal plastic (PMMA). Diffuser and light guide made of non-yellowing plastic (PMMA). Lateral light coupling with LED. Control gear built in. Light source (LED) included in delivery. Energy efficiency class A+

>no

Property	Value
Max. System power:	39 W
Rated luminous flux according to IEC 62722-2-1:	3100 lm
Suitable for number of lamps:	1
Height/depth:	52 mm
Protection rating (IP):	IP40
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	4000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Outer diameter:	580 mm
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	5 to 30 °C
Socket:	other
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	opal plastic
Light distributor:	without
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for Pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	39 W
Luminaire luminous efficacy:	80 lm/W
Power factor:	0.98
Wiring type:	Termination
Number of poles:	2
Conductor cross-section:	1.50 mm²

Characteristics

HABSidelite ECO 39W 4000K D580 H52

Manufacturer

HAN312156.002.1

GTIN4051859186106

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Outer diameter580 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-13100lm

Rated ambient temperature according to IEC62722-2-15 to 30 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power39 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth52 mm

Power factor0.98

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy80lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance39 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles2

Impact resistanceIK03

IP protection)IP40

Protection class (NEMA)Other

Protection classII

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum
