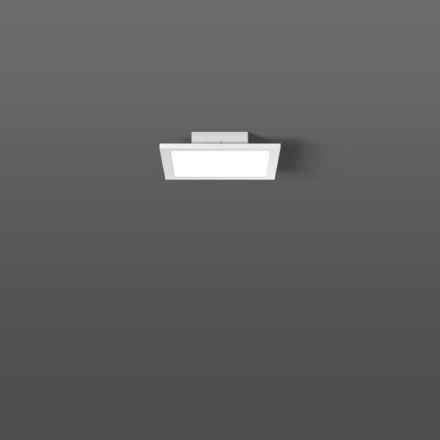

RZB 312375.002 Sidelite ECO 19W 3000K 295x295x45.7 LED wall / ceiling light

RZB 312375.002 Sidelite ECO 19W 3000K 295x295x45.7 LED wall / ceiling light

In stock

SKU: 534905

Price on request

€112.75

€0

Overview

Highly economical luminaire series with progressive LED technology, consisting of ceiling, wall, insert, recessed and pendant luminaires for interiors. Excellently suited for office areas (UGR 19) and computer workstations (BAP) in accordance with DIN EN 12464-1. Suitable for use in the food and beverage industry. Light guide and diffuser made of non-yellowing PMMA with fine microprismatics. RZB SIDELITE technology: lateral light coupling for above-average homogeneous luminance distribution. LED service life 50,000 h (L70, B10). Luminaire luminous efficacy up to 130 lm/W. Flicker < 5%. Extremely simple converter installation using a twist-and-plug system and extended converter connection cable to the luminaire. Luminaire frame made of powder-coated aluminum. Surface-mounted housing made of powder-coated sheet steel. Diffuser made of opal plastic (PMMA). Diffuser and light guide made of non-yellowing plastic (PMMA). Lateral light coupling with LED. Control gear built in. Light source (LED) included in delivery. Energy efficiency class A++

Property	Value
Max. System power:	19 W
Rated luminous flux according to IEC 62722-2-1:	2100 lm
Suitable for number of lamps:	1
Length:	295 mm
Width:	295 mm
Height/depth:	45.70 mm
Protection rating (IP):	IP40
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	5 to 30 °C
Socket:	other
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Opal plastic
Light distributor:	without
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Protection class (NEMA):	other
Suitable for lamp power:	19 W
Luminous efficacy:	111 lm/W
Power factor:	0.90
Type of Wiring:	Termination
Number of poles:	2
Conductor cross-section:	1.50 mm²

Characteristics

HABSidelite ECO 19W 3000K 295x295x45,7

Manufacturer

HAN312375.002

GTIN4051859328971

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-12100lm

Rated ambient temperature according to IEC62722-2-15 to 30 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width295 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power19 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Height/Depth45.70 mm

Power factor0.90

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy111lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Length295 mm

Max. system performance19 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles2

Impact resistanceIK03

IP protection)IP40

Protection class (NEMA)Other

Protection classII

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum

RZB 312375.002 Sidelite ECO 19W 3000K 295x295x45.7 LED wall / ceiling light
