RZB 312423.0031.2.730 Triona 29W 2550lm 827-865 anthracite LED wall / ceiling light

RZB 312423.0031.2.730 Triona 29W 2550lm 827-865 anthracite LED wall / ceiling light

In stock

SKU: 723116

Price on request

€934.02

€0

Overview

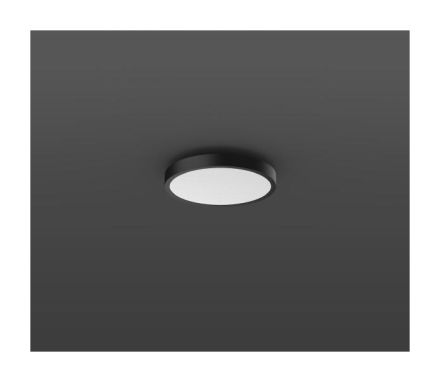

Decorative round LED surface-mounted panel light. Flat, seamless frame made of powder-coated extruded aluminum profile. Powder-coated sheet steel cover. Light emission via opal/prismatic plastic diffuser. Diffuser and light guide made of non-yellowing plastic (PMMA). Lateral light coupling (RZB SIDELITE® technology) for above-average homogeneous luminance distribution and borderless illumination. Tunable White versions dynamically adjustable from 2700 K to 6500 K. Suitable for ceiling mounting and wall mounting. Tool-free installation using bayonet lock. Control gear integrated. Extremely simple installation thanks to plug & play connector system. With Casambi smart+free Bluetooth® control for wireless networking and operation using an Android / iOS device, free app available for download. Excellently suited for office areas (UGR < 19) and computer workstations (BAP) in accordance with DIN EN 12464-1. Predestined for use in Human Centric Lighting (HCL) in conjunction with RZB light management systems.

>no

Property	Value
Max. System power:	30 W
Rated luminous flux according to IEC 62722-2-1:	2700 lm
Suitable for number of lamps:	1
Height/depth:	88 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	anthracite
Housing material:	steel
Color temperature:	2700 to 6500 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Outer diameter:	461 mm
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Cover material:	structured plastic
Light distributor:	other
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	multi-colored
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for Pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:
Dimming 1-10 V:	no
Dimming manufacturer-specific:	yes
Dimming DALI:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	29 to 30 W
Luminaire luminous efficacy:	94 lm/W
Power factor:	0.97
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	1.50 mm²

Characteristics

HABTriona 29W 2550lm 827-865 anthracite

Manufacturer

HAN312423.0031.2.730

GTIN4051859435815

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Outer diameter461 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-12700lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificYes

Dimming with push buttonNo

Dimming programmableNo

Color temperature2700 to 6500 K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power29 to 30 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorAnthracite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth88 mm

Power factor0.97

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy94lm/W

LampsLED not replaceable

Light emissionDirect

Light colorMulticolored

Light distributorOther

Light distributionSymmetrical

Max. system performance30W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Number of poles3

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic structured

Housing materialSteel
