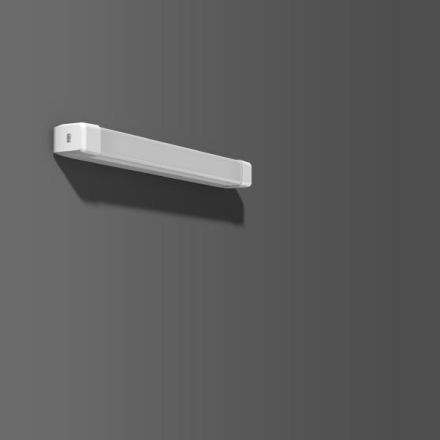

RZB 451215.002.2 Baleva 9W 3000/4000K 500x46x60mm LED wall / ceiling light

RZB 451215.002.2 Baleva 9W 3000/4000K 500x46x60mm LED wall / ceiling light

In stock

SKU: 803634

Price on request

€92.22

€0

Overview

Linear light with a timeless and functional design. Ideal for sanitary areas, corridors, waiting areas, nursing homes, patient rooms. Fitting and end caps made of white plastic. Diffuser made of opal plastic (polycarbonate), impact-resistant. Homogeneous and soft illumination. MultiColour: with rear switching element, colour temperature 3000 K or 4000 K can be individually adjusted. Factory-set to 4000 K. Diffuser can be installed without tools. Quick and easy installation. Horizontal and vertical installation possible. 2 central cable entries for looping the cable through. Operating device integrated and encapsulated.

>no

Property	Value
Max. System power:	9 W
Rated luminous flux according to IEC 62722-2-1:	950 lm
Suitable for number of lamps:	1
Length:	500 mm
Width:	46 mm
Height/depth:	60 mm
Protection rating (IP):	IP44
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	plastic
Color temperature:	3000 to 4000 K
Impact resistance:	IK07
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-30 to 40 °C
Socket:	other
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Opal plastic
Light distributor:	without
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for Pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	yes
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	9 W
Luminaire luminous efficacy:	106 lm/W
Power factor:	0.90
Type of wiring:	suitable for through wiring
Number of poles:	2
Conductor cross-section:	2.50 mm²

Characteristics

HABBaleva 9W 3000/4000K 500x46x60mm

Manufacturer

HAN451215.002.2

GTIN4051859529743

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-1950lm

Rated ambient temperature according to IEC62722-2-1-30 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width46 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000 to 4000 K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power9W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth60 mm

Power factor0.90

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy106lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light distributorWithout

Light distributionSymmetrical

Length500 mm

Max. system performance9W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles2

Impact resistanceIK07

IP protection)IP44

Protection class (NEMA)Other

Protection classII

Voltage typeAC

Cover materialPlastic opal

Housing materialPlastic

RZB 451215.002.2 Baleva 9W 3000/4000K 500x46x60mm LED wall / ceiling light
