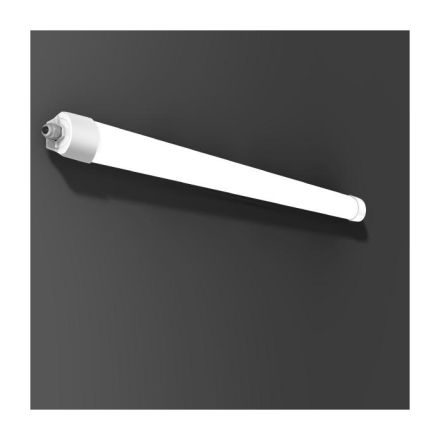

RZB 451221.002 Planox PRO 48/27W 840 1650x88x63 on/off LED wall / ceiling light

RZB 451221.002 Planox PRO 48/27W 840 1650x88x63 on/off LED wall / ceiling light

In stock

SKU: 704982

Price on request

€125.61

€0

Overview

Design-oriented damp-proof luminaire. 1:1 replacement for fluorescent lamps. Impact protection: IK08. High protection class IP 66. Operating range: -30°C to +50°C. Operating range (.76 DALI variants): -25°C to +50°C. Luminaires with limited surface temperature according to DIN EN 60598-2-24 for use in an environment in which deposits of conductive dust on the luminaire can be expected. MultiLumen function: light output can be adjusted in 2 levels (2-in-1 principle = replacement for 1 and 2-lamp luminaires). Color tolerance: 3x MacAdam (3 SDCM). LED service life 50,000 h (L80, B10). Housing and end caps made of impact-resistant polycarbonate (PC). The injection-molded diffusers are internally prismatic, UV-resistant and offer homogeneous light emission. Rear light component for brightening the ceiling. Flexible installation thanks to movable mounting brackets. Ideal when replacing luminaires. Cable installation on both sides using a twist lock. Convenient cable entry via cable screw connection at both ends. Standard through-wiring for additional luminaires (on/off: 5 x 1.5 mm2, DALI: 7 x 1.5 mm2). Suitable for use in the food and beverage industry. DALI converter suitable for direct current, suitable for central emergency power supply. Side panels made of white plastic (polycarbonate). Diffuser made of opal plastic (polycarbonate). Operating device encapsulated and integrated and firmly connected to the diffuser and side panel. Convenient cable entry via cable screw connection and easy installation thanks to a twist lock on both sides. Luminaire with integrated through-wiring for stringing together additional luminaires (also protection class I). Ceiling mounting bracket made of stainless steel and 3 triangle brackets for pendant mounting included in delivery. Light source (LED) included in delivery. With internal switching element adjustable to L and H for: Luminaire luminous flux on L: 4100 lm (27W) Luminaire luminous flux on H: 7150 lm (48W) The switching element is factory-set

Property	Value
Max. System power:	48 W
Rated luminous flux according to IEC 62722-2-1:	7150 lm
Suitable for number of lamps:	1
Length:	1650 mm
Width:	88 mm
Height/depth:	63 mm
Protection rating (IP):	IP66
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	yes
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	plastic
Color temperature:	4000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-30 to 50 °C
Socket:	other
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Opal plastic
Light distributor:	other
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Suitable for lamp power:	27 to 48 W
Luminous efficacy:	149 lm/W
Power factor:	0.90
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	2.50 mm²

Characteristics

HABPlanox PRO 48/27W 840 1650x88x63 on/off

Manufacturer

HAN451221.002

GTIN4051859449157

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-17150lm

Rated ambient temperature according to IEC62722-2-1-30 to 50 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width88 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power27 to 48 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth63 mm

Power factor0.90

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy149lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length1650 mm

Max. system performance48W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles5

Impact resistanceIK08

IP protection)IP66

Protection class (NEMA)Other

Protection classII

Voltage typeAC

Cover materialPlastic opal

Housing materialPlastic
