RZB 501047.004 Areno, 8.5W 500lm 840 silver LED wall / ceiling light

RZB 501047.004 Areno, 8.5W 500lm 840 silver LED wall / ceiling light

In stock

SKU: 722832

Price on request

€105.64

€0

Overview

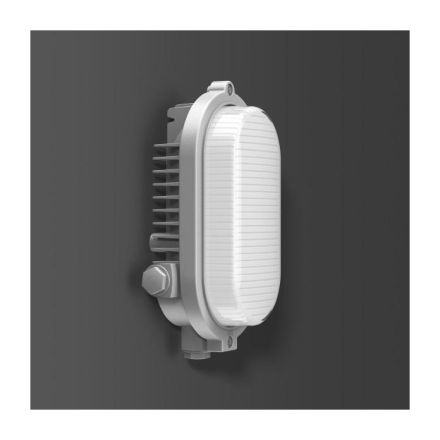

Robust die-cast aluminum LED oval light in a modern design. Housing made of die-cast aluminum, powder-coated. Cover ring made of die-cast aluminum, powder-coated and screwed. Diffuser made of hardened crystal glass with structure, coated white on one side. Full-surface homogeneous illumination. 3 cable entries M20x1.5. Internal screw holes, with silicone seal. Suitable for ceiling mounting, wall mounting. Suitable for use in harsh environments.

Property	Value
Max. System power:	8.50 W
Rated luminous flux according to IEC 62722-2-1:	500 lm
Suitable for number of lamps:	1
Length:	227 mm
Width:	141 mm
Height/depth:	87 mm
Protection rating (IP):	IP66
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	Silver
Housing material:	Aluminum
Color temperature:	4000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 up to 35 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	no
Cover material:	opal glass
Light distributor:	without
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	no
Light colour:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for Surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming Trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Rated service life L70/B50 at 25 °C:	35000 h
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Suitable for lamp power:	8.50 W
Luminaire luminous efficacy:	59 lm/W
Power factor:	0.80
Wiring type:	suitable for through wiring
Number of poles:	2
Conductor cross-section:	2.50 mm²

Characteristics

HABAreno, 8.5W 500lm 840 silver

Manufacturer

HAN501047.004

GTIN4051859530954

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Rated lifetime L70/B50 at 25 °C35000 hours

Rated luminous flux according to IEC 62722-2-1500lm

Rated ambient temperature according to IEC62722-2-1-20 to 35 °C

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Width141 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power8.50W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorSilver

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth87 mm

Power factor0.80

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy59lm/W

LampsLED replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Length227 mm

Max. system performance8.50W

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles2

Impact resistanceIK03

IP protection)IP66

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialGlass opal

Housing materialAluminum
