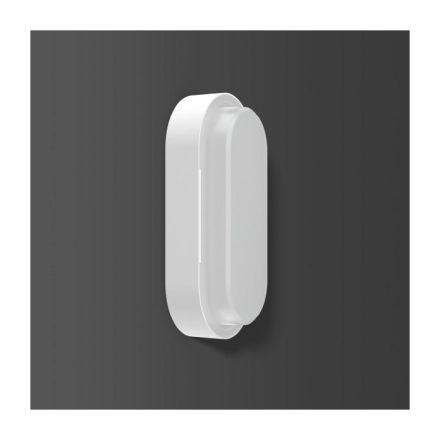

RZB 501050.002 HB 710 6/9.5W 700/1100lm 840 white LED wall / ceiling light

In stock
SKU: 723003
€16.95
Into a basketIn the basketGo

Overview

Oval light in a classic design. Housing and diffuser opal made of impact-resistant plastic (polycarbonate). Internal fastening points mean no screws are visible. Simple, tool-free installation using the plug & play connector system. LED module can be plugged in without tools. Convenient and flexible connection option using 2 rear and 4 side cable entries. Suitable for through-wiring. MultiLumen: The luminous flux can be adjusted in 2 levels. Factory-preset to the highest luminous flux.

Property Value
Max. System power: 9.50 W
Rated luminous flux according to IEC 62722-2-1: 1100 lm
Suitable for number of lamps: 1
Length: 207 mm
Width: 97 mm
Height/depth: 56 mm
Protection rating (IP): IP54
Protection class: II
Luminaire with limited surface temperature 'D-mark': yes
Nominal voltage: 220 to 240 V
Housing color: white
Housing material: plastic
Color temperature: 4000 K
Impact resistance: IK07
Color rendering index CRI: 80-89
Suitable for ceiling mounting: yes
Suitable for wall mounting: yes
Voltage type: AC
With motion detector: no
Beam angle: free beam/diffuse
With light source: yes
Light source: LED not replaceable
Rated ambient temperature according to IEC62722-2-1: -30 to 35 °C
Connection type: Plug-in terminal
With operating device: yes
Cover material: Plastic opal
Light distributor: without
Without dimming function: yes
Light emission: direct
Light distribution: symmetrical
With light sensor: no
Operating device: EVG
Suitable for recessed mounting: no
Light colour: white
Suitable for computer workstations in accordance with EN 12464-1: no
Suitable for light strip configuration: no
Suitable for pendulum suspension: no
Suitable for surface mounting: yes
Suitable for emergency light: no
Covering the lamp with thermal insulation material possible: yes
DMX dimming: no
DSI dimming: no
With air slots: no
LineSwitch dimming: no
Potentiometer dimming (integrated in device): no
0-10 V dimming: no
Dimming GPRS: no
Dimming 1-10 V: no
Dimming manufacturer-specific: no
Dimming DALI: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Dimming dependent on operating device: no
Rated service life L70/B50 at 25 °C: 35000 h
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Suitable for lamp power: 6 to 9.50 W
Luminaire luminous efficacy: 116 lm/W
Type of wiring: suitable for through wiring
Number of poles: 2
Conductor cross section: 2.50 mm²

Characteristics

HABHB 710 6/9.5W 700/1100lm 840 white
ManufacturerRZB
HAN501050.002
GTIN4051859537557
Covering the luminaire with thermal insulation material possibleYes
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Beam angleFree-radiating/diffuse
Rated lifetime L70/B50 at 25 °C35000 hours
Rated luminous flux according to IEC 62722-2-11100lm
Rated ambient temperature according to IEC62722-2-1-30 to 35 °C
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1No
Width97 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for lamp power6 to 9.50 W
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorWhite
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth56 mm
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-markYes
Luminaire luminous efficacy116lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributorWithout
Light distributionSymmetrical
Length207 mm
Max. system performance9.50W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles2
Impact resistanceIK07
IP protection)IP54
Protection class (NEMA)Other
Protection classII
Voltage typeAC
Cover materialPlastic opal
Housing materialPlastic
