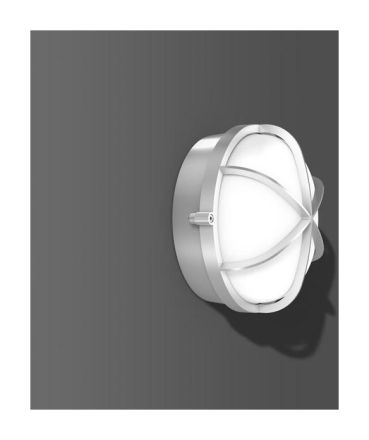

RZB 51052.004 QA60 57W E27 D245 H125,SK IP65 LED wall / ceiling light

RZB 51052.004 QA60 57W E27 D245 H125,SK IP65 LED wall / ceiling light

In stock

SKU: 529102

Price on request

€85.11

€0

Overview

Impact-resistant plastic cover suitable for robust environmental requirements. LED: Use of smart, cost-effective LED modules for mains voltage with high system light output for energy-saving operation. The high protection class ensures long-term, problem-free operation. To avoid errors during installation, the luminaire has a sturdy stainless steel mounting bracket with hole tolerance compensation, which is located outside the sealing system. The standard second cable inlet allows easy mains routing without an additional junction box. Bracket and protective basket made of die-cast aluminum, powder-coated. Cover made of opal plastic (polycarbonate). Energy efficiency class A++, E

Property	Value
Max. System power:	57 W
Suitable for number of bulbs:	1
Height/depth:	125 mm
Protection rating (IP):	IP65
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	0 to 250 V
Housing color:	Silver
Material of the housing:	Aluminium
Impact resistance:	IK08
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Outer diameter:	245 mm
Type of voltage:	AC/DC
With motion detector:	no
Beam angle:	extremely wide beam >80°
Light source:	HV halogen lamp
Rated ambient temperature according to IEC62722-2-1:	-20 to 25 °C
Socket:	E27
Connection type:	Screw terminal
With operating device:	no
Cover material:	Opal plastic
Light distributor:	without
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	no
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	yes
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	yes
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Suitable for lamp power:	57 W
Power factor:	1
Type of Wiring:	suitable for through wiring
Number of poles:	2
Conductor cross-section:	2.50 mm²

Characteristics

HABQA60 57W E27 D245 H125,SK IP65

Manufacturer

HAN51052.004

GTIN4051859133742

Covering the luminaire with thermal insulation material possibleYes

Connection typeScrew terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Outer diameter245 mm

Rated ambient temperature according to IEC62722-2-1-20 to 25 °C

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationYes

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

VersionE27

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power57W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorSilver

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth125 mm

Power factor1

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

LampsHV halogen lamp

Light emissionDirect/indirect

Light distributorWithout

Light distributionSymmetrical

Max. system performance57W

With operating deviceNo

With motion detectorNo

With light sensorNo

With air slotsNo

Nominal voltage0 to 250V

Without dimming functionYes

Number of poles2

Impact resistanceIK08

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC/DC

Cover materialPlastic opal

Housing materialAluminum

RZB 51052.004 QA60 57W E27 D245 H125,SK IP65 LED wall / ceiling light
