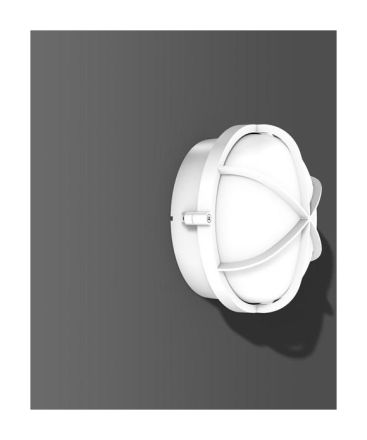

RZB 51063.002 9.1W 4000K D245 H125,SK IP65 LED wall / ceiling light

RZB 51063.002 9.1W 4000K D245 H125,SK IP65 LED wall / ceiling light

In stock

SKU: 529096

Price on request

€122.60

€0

Overview

Impact-resistant plastic cover suitable for robust environmental requirements. LED: Use of smart, cost-effective LED modules for mains voltage with high system light output for energy-saving operation. The high protection class ensures long-term problem-free operation. To avoid errors during installation, the luminaire has a sturdy stainless steel mounting bracket with hole tolerance compensation, which is located outside the sealing system. The standard second cable inlet allows easy mains routing without an additional junction box. Bracket and protective basket made of die-cast aluminum, powder-coated. Cover made of opal plastic (polycarbonate). Energy efficiency class A+

>no

Property	Value
Max. System power:	6 W
Rated luminous flux according to IEC 62722-2-1:	410 lm
Suitable for number of lamps:	1
Height/depth:	125 mm
Protection rating (IP):	IP65
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	white
Housing material:	aluminum
Color temperature:	4000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Outer diameter:	245 mm
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 25 °C
Socket:	other
Connection type:	screw terminal
With operating device:	no
Cover material:	opal plastic
Light distributor:	without
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for Pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Suitable for lamp power:	6 W
Luminaire luminous efficacy:	69 lm/W
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²

Characteristics

HAB9.1W 4000K D245 H125,SK IP65

Manufacturer

HAN51063.002

GTIN4051859132066

Covering the luminaire with thermal insulation material possibleYes

Connection typeScrew terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Outer diameter245 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-1410lm

Rated ambient temperature according to IEC62722-2-1-20 to 25 °C

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power6W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth125 mm

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy69lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance6W

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionYes

Number of poles3

Impact resistanceIK08

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum
