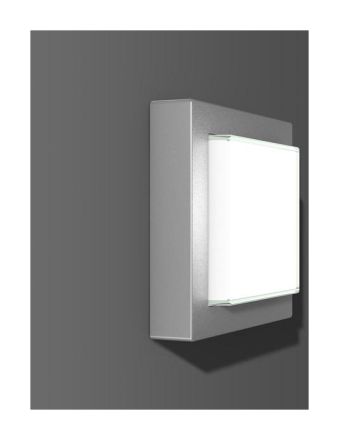

RZB 581637.004.19 Cadero 13.5W 3000K 25 LED wall / ceiling light

RZB 581637.004.19 Cadero 13.5W 3000K 25 LED wall / ceiling light

In stock

SKU: 531775

Price on request

€248.78

€0

Overview

The flat design offers universal usability thanks to the choice of round or square glass cover. The cover made of crystal glass with a frosted interior also shines in daylight. Use of smart, cost-effective LED modules for mains voltage with high LED system light output for energy-saving operation. Durability through the use of high-quality materials such as aluminum, crystal glass and a durable powder coating. Fastening points outside the lamp compartment, safe installation through consistent error avoidance. Seawater-resistant coating. Fast installation: tolerance compensation for drill holes. Generous cable routing space allows wall outlet even in the middle of the luminaire. Electrical connection via plug-in terminals. Diffuser fastening using mounting fixation. Second cable entry for mains forwarding. The high protection class IP 65 allows maintenance-free, problem-free LED operation. Also available as a version for emergency lighting. Housing made of corrosion-resistant die-cast aluminum for outdoor use, powder-coated. Cover made of crystal glass with a frosted interior. Screwless installation of the cover with a snap lock. Fastening outside the sealed area with hole tolerance compensation. Light source (mains voltage LED module) included in delivery. With diaphragm valve as standard to prevent condensation. With second cable entry for mains forwarding. Light with motion detector including twilight switch. Energy efficiency class A+, A+A+

Property	Value
Max. System power:	12 W
Rated luminous flux according to IEC 62722-2-1:	630 lm
Suitable for number of lamps:	1
Length:	257 mm
Width:	257 mm
Height/depth:	81 mm
Protection rating (IP):	IP65
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	Silver
Housing material:	Aluminum
Color temperature:	3000 K
Impact resistance:	IK05
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	yes
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 41 °C
Socket:	other
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Opal glass
Light distributor:	without
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	yes
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Suitable for lamp power:	12 W
Luminous efficacy:	53 lm/W
Type of Wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²

Characteristics

HABCadero 13,5W 3000K 25

Manufacturer

HAN581637.004.19

GTIN4051859224990

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-1630lm

Rated ambient temperature according to IEC62722-2-1-20 to 41 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width257 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power12W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorSilver

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth81 mm

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy53lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Length257 mm

Max. system performance12W

With operating deviceYes

With motion detectorYes

With light sourceYes

With light sensorYes

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles3

Impact resistanceIK05

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialGlass opal

Housing materialAluminum
