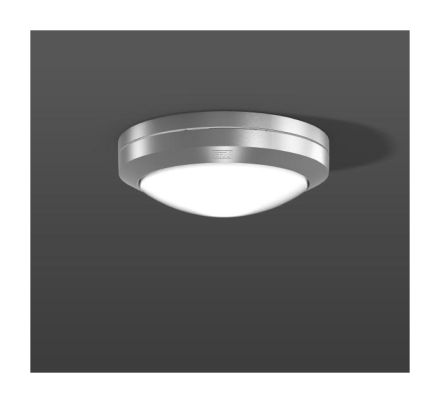

RZB 582002.004 Rounded Midi 10W 4000 LED wall / ceiling light

RZB 582002.004 Rounded Midi 10W 4000 LED wall / ceiling light

In stock

SKU: 532323

Price on request

€144.10

€0

Overview

Elegant appearance without visible screws thanks to bayonet lock with snap lock (optional) as theft protection. LED: Use of smart, cost-effective LED modules for mains voltage with high system light output for energy-saving operation. Seawater-resistant coating. Replaceable LED module. Second cable entry for mains forwarding. Housing made of corrosion-resistant die-cast aluminum, powder-coated, robust design. Diaphragm valve for pressure equalization and prevention of condensation. Fastening points outside the lamp compartment, safe installation through consistent error avoidance. Fast installation: tolerance compensation for drill holes. Generous cable management space allows wall outlet even in the middle of the luminaire. Electrical connection via plug-in terminals. Diffuser attachment using mounting fixation. Huge variety of variants: 24 possible designs per configuration, based on two variants: crystal glass, satin matt or impact-resistant, opal plastic (PC). Three standard colors. Four housing variants: flat cover or spherical cap, half shell, protective basket. Versions for escape route lighting with central battery feed available. Housing made of corrosion-resistant die-cast aluminum for outdoor use, powder-coated. Diffuser ball cap made of opal glass. With mounting fixation. Screwless installation of the diffuser via bayonet lock with snap lock. Fastening outside the sealed area with hole tolerance compensation. Light source (mains voltage LED module) included in delivery. Mains connection 2x 3x 1.5 mm. Energy efficiency class A+

Property	Value
Max. System power:	10 W
Rated luminous flux according to IEC 62722-2-1:	490 lm
Suitable for number of lamps:	1
Height/depth:	91 mm
Protection rating (IP):	IP66
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	Silver
Housing material:	Aluminum
Color temperature:	4000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Outer diameter:	268 mm
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	no
Cover material:	opal glass
Light distributor:	without
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent on operating device:	no
Rated service life L70/B50 at 25 °C:	45000 h
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Suitable for lamp power:	10 W
Luminaire luminous efficacy:	49 lm/W
Power factor:	0.99
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²

Characteristics

HABRounded Midi 10W 4000

Manufacturer

HAN582002.004

GTIN4051859217381

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Outer diameter268 mm

Rated lifetime L70/B50 at 25 °C45000 hours

Rated luminous flux according to IEC 62722-2-1490lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power10W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorSilver

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth91 mm

Power factor0.99

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy49lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance10W

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles3

Impact resistanceIK08

IP protection)IP66

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialGlass opal

Housing materialAluminum
