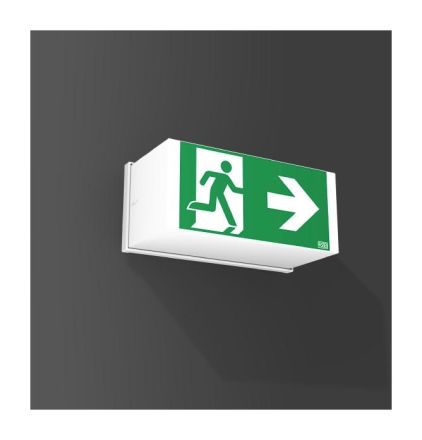

RZB 672245.002.1 Multivariable 840 white LED wall / ceiling light

RZB 672245.002.1 Multivariable 840 white LED wall / ceiling light

In stock

SKU: 723111

Price on request

€233.70

€0

Overview

Lights for escape route marking. Powder-coated metal fitting. Opal plastic diffuser (polycarbonate). 4 films for escape route marking included (according to ISO 7010). Integrated operating devices. Single battery system with automatic self-test.

Property	Value
Housing color:	white
Protection type (IP):	IP54
Protection class:	I
Voltage type:	AC
Detection range:	21 m
Color temperature:	4000 K
Length:	274 mm
Width:	125 mm
Height/Depth:	139 mm
Max. System performance:	3.80 W
Battery type:	NiMh
Nominal operating time:	3 h
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	opal plastic
With light source:	yes
Monitoring device:	automatic self-test
Mounting type:	Wall mounting/ceiling mounting
Housing material:	aluminum
Suitable for marking type:	other
Feed-in:	decentralized (single battery)
Function:	Escape route marking
With pictogram:	yes
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	16 to 17 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	25 °C
Type of wiring:	Termination
Number of poles:	4
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
