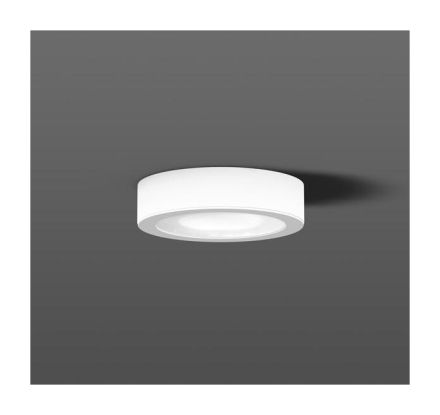

HABToledo Flat 1
HAN672272.002
GTIN4051859215240
Connection typePlug connection
Type of wiringSuitable for through wiring
Outer diameter257 mm
Rated luminous flux according to IEC 62722-2-11650lm
Rated ambient temperature according to IEC62722-2-125 to 30 °C
Operating deviceLED control gear current controlled
Color temperature3000K
VersionWithout
FunctionEscape route lighting
Suitable for number of lamps1
Housing colorWhite
Height/Depth63 mm
LED nominal current at constant current83 to 200 mA
Power factor0.90
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light distributorWithout
Max. system performance20W
With light sourceYes
Mounting typeWall mounting/ceiling mounting
Nominal voltage100 to 240 V
Number of poles4
Impact resistanceIK06
IP protection)IP40
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialSteel
