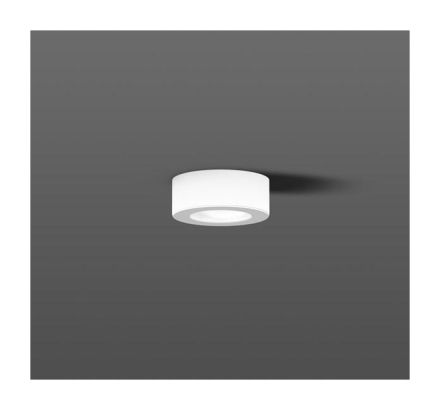

RZB 672290.002.1.89 Toledo Flat 5 LED wall / ceiling light

RZB 672290.002.1.89 Toledo Flat 5 LED wall / ceiling light

In stock

SKU: 532863

Price on request

€160.10

€0

Overview

Design continuity with general lighting. We offer a comprehensive product range in the area of emergency lighting and general lighting. This means we can offer our customers integrated solutions for all areas of application, depending on the building project. LED service life 50,000 h (L70, B10). Light guide and plastic diffuser made of non-yellowing PMMA. Also suitable for high ceilings. Easy to install. Large luminaire spacing for escape route lighting. Unobtrusive design. Cylindrical housing made of powder-coated sheet steel. Cover ring made of powder-coated die-cast aluminum. Light guide and plastic cover made of non-yellowing plastic (PMMA). Cover made of opal matt plastic. LED converter included in delivery. Light source (LED) included in delivery. With AC-Control monitoring module for Luxifair central battery systems. Energy efficiency class A+

Property	Value
Housing color:	white
Protection rating (IP):	IP40
Protection class:	I
Voltage type:	AC/DC
Color temperature:	4000 K
Height/depth:	57 mm
Max. System performance:	6 W
Battery properties:	other
Rated luminous flux according to IEC 62722-2-1:	400 lm
Luminous flux in standby mode:	400 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK06
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	opal plastic
Outer diameter:	150 mm
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Wall mounting/ceiling mounting
Material of the housing:	steel
Suitable for type of marking:	other
Feed-in:	central (central battery)
Function:	escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	25 to 27 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	-10 to 35 °C
Power factor:	0.55
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	other
