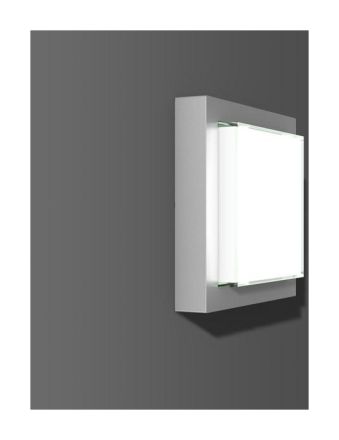

RZB 672295.004.1 Cadero 13 LED wall / ceiling light

RZB 672295.004.1 Cadero 13 LED wall / ceiling light

In stock

SKU: 532880

Price on request

€243.86

€0

Overview

The flat design offers universal usability thanks to the choice of round or square glass cover. The cover made of crystal glass with a frosted interior also shines in daylight. Use of smart, cost-effective LED modules for mains voltage with high LED system light output for energy-saving operation. Durability through the use of high-quality materials aluminum, crystal glass and a durable powder coating. Seawater-resistant coating. Quick installation: tolerance compensation for drill holes. Generous cable management space allows wall outlet even in the middle of the luminaire. Electrical connection via plug-in terminals. Diffuser fastening by mounting fixation. Second cable entry for mains forwarding. The high protection class IP 65 allows maintenance-free, problem-free LED operation. Housing made of corrosion-resistant die-cast aluminum for outdoor use, powder-coated. Cover made of crystal glass with a frosted interior. Screwless assembly of the cover with snap lock. Fastening outside the sealed area with hole tolerance compensation. Light source (mains voltage LED module) included in delivery. Supplied as standard with a diaphragm valve to prevent condensation. With a second cable entry for mains connection. Reduced luminous flux in DC operation! Energy efficiency class A+, A+A+

Property	Value
Housing color:	Silver
Protection rating (IP):	IP65
Protection class:	I
Voltage type:	AC/DC
Color temperature:	4000 K
Length:	257 mm
Width:	257 mm
Height/Depth:	81 mm
Max. System performance:	13 W
Battery properties:	other
Rated luminous flux according to IEC 62722-2-1:	660 lm
Luminous flux in standby mode:	160 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK05
Socket:	without
Rated voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	opal glass
With light source:	yes
Monitoring device:	without
Mounting type:	Wall mounting/ceiling mounting
Housing material:	Aluminium
Suitable for Type of marking:	other
Feed-in:	central (central battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	54 to 59 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Type of wiring:	suitable for through-wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
