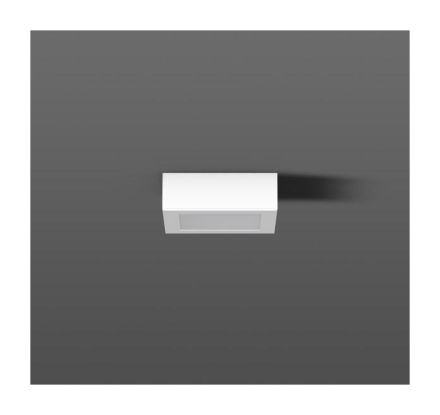

RZB 901552.002.76 9W 3000K 173x173x58 dim. DALI LED wall / ceiling light

RZB 901552.002.76 9W 3000K 173x173x58 dim. DALI LED wall / ceiling light

In stock

SKU: 529150

Price on request

€121.92

€0

Overview

Super-flat LED surface-mounted downlight in five round sizes and four square sizes. Light guide and plastic diffuser made of non-yellowing PMMA. Suitable for ceiling and wall mounting. Very low installation height. LED service life 50,000 h (L70, B10). Color rendering Ra> 80. Color tolerance: 4x MacAdam (4 SDCM). Areas of use: hallway, adjoining rooms, hotels, restaurants, meeting rooms, private areas. Surface-mounted housing made of powder-coated sheet steel. Square cover plate made of powder-coated die-cast aluminum. Light guide and plastic cover made of non-yellowing plastic (PMMA). Cover made of opal matt plastic. LED converter included in delivery. Light source (LED) included in delivery. Energy efficiency class A+

Property	Value
Max. System power:	8 W
Rated luminous flux according to IEC 62722-2-1:	770 lm
Housing color:	white
Housing material:	other
Protection class (IP):	IP40
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	172 mm
Width:	172 mm
Height/depth:	58 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for lamp power:	8 W
Beam angle:	extremely wide beam >80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK06
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of bulbs:	1
Luminous flux:	770 lm
Cover material:	Opal plastic
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC/DC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	33 to 36 mA
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	without
Light emission:	direct
Total harmonic distortion (THD):	0.10
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-20 to 35 °C
Type of wiring:	Termination
Power factor:	0.90
Number of poles:	4
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal
Luminaire luminous efficacy:	97 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG0
Color consistency (McAdam ellipse):	SDCM4

Characteristics

Total harmonic distortion (THD)0.10

HAB9W 3000K 173x173x58 dim.

Manufacturer

HAN901552.002.76

GTIN4051859132363

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-1770lm

Rated ambient temperature according to IEC62722-2-1-20 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width172 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM4

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power8W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth58 mm

LED nominal current at constant current33 to 36 mA

Power factor0.90

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy97lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux770lm

Light distributorWithout

Light distributionSymmetrical

Length172 mm

Max. system performance8W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG0

Number of poles4

ReflectorWithout

Impact resistanceIK06

IP protection)IP40

Protection class (NEMA)Other

Protection classII

Voltage typeAC/DC

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialOther
