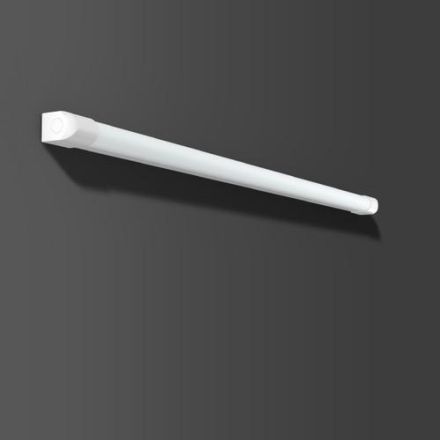

RZB HB 507 11W 1400lm 830 840 ws LED wall / ceiling light

In stock
SKU: 844923
€42.08
Into a basketIn the basketGo

Overview

451223.002 : HB 507, 11 W, 1400 lm, 830, 840, white, on/off linear lights, L 1200 W 42 H 55

Property Value
Max. System power: 11 W
Rated luminous flux according to IEC 62722-2-1: 1400 lm
Suitable for number of lamps: 1
Length: 1200 mm
Width: 42 mm
Height/depth: 55 mm
Protection rating (IP): IP40
Protection class: II
Luminaire with limited surface temperature 'D-mark': no
Nominal voltage: 220 to 240 V
Housing color: white
Color temperature: 3000 to 4000 K
Impact resistance: IK03
Color rendering index CRI: 80-89
Suitable for ceiling mounting: yes
Suitable for wall mounting: yes
Voltage type: AC
With motion detector: no
Beam angle: free beam/diffuse
With light source: yes
Light source: LED not replaceable
Rated ambient temperature according to IEC62722-2-1: -30 to 40 °C
Socket: other
Connection type: plug-in terminal
With operating device: yes
Without dimming function: yes
Light emission: direct/indirect
Light distribution: symmetrical
With light sensor: no
Operating device: LED operating device current-controlled
Suitable for recessed mounting: no
Suitable for computer workstations in accordance with EN 12464-1: no
Suitable for pendant suspension: no
Suitable for surface mounting: yes
Suitable for emergency lighting: yes
Covering of the luminaire with thermal insulation material possible: yes
DMX dimming: no
DSI dimming: no
With air slots: no
Dimming LineSwitch: no
Dimming potentiometer (device integrated): no
Dimming 0-10 V: no
Dimming GPRS: no
Dimming 1-10 V: no
Dimming manufacturer-specific: no
DALI dimming: no
Mains voltage modulation dimming: no
Trailing edge dimming: no
Phase control dimming: no
Programmable dimming: no
RF dimming: no
Sine wave reduction dimming: no
Touch and dim dimming: no
Dimming Zigbee: no
Dimming with push button: no
Dimming depending on the operating device: no
Rated service life L70/B50 at 25 °C: 50000 h
Protection class (NEMA): other
Suitable for lamp power: 11 W
Luminaire luminous efficacy: 128 lm/W
Power factor: 0.70
Wiring type: Termination
Number of poles: 2
Conductor cross-section: 2.50 mm²

Characteristics

HABHB 507 11W 1400lm 830 840 ws
ManufacturerRZB
HAN451223.002
GTIN4051859726807
Covering the luminaire with thermal insulation material possibleYes
Connection typePlug-in terminal
Type of wiringDiploma
Beam angleFree-radiating/diffuse
Rated lifetime L70/B50 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-11400lm
Rated ambient temperature according to IEC62722-2-1-30 to 40 °C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Width42 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000 to 4000 K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for lamp power11 W
Suitable for number of lamps1
Suitable for emergency lightingYes
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorWhite
Height/Depth55 mm
Power factor0.70
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy128lm/W
LampsLED not replaceable
Light emissionDirect/indirect
Light distributionSymmetrical
Length1200 mm
Max. system performance11 W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Number of poles2
Impact resistanceIK03
IP protection)IP40
Protection class (NEMA)Other
Protection classII
Voltage typeAC
