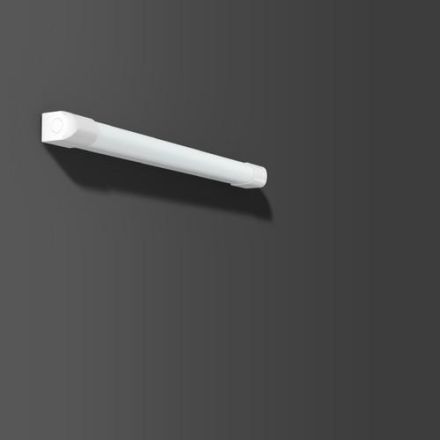

RZB HB 507 9.3W 1000lm 830 840 ws LED wall / ceiling light

RZB HB 507 9.3W 1000lm 830 840 ws LED wall / ceiling light

In stock

SKU: 844922

Price on request

€30.35

€0

Into a basketIn the basketGo

Overview

451222.002 : HB 507, 9, 3 W, 1000 lm, 830, 840, white, on/off, L 600 W 42 H 55

Property	Value
System power:	9.30 W
Luminous flux:	1000 lm
Number of LM:	1
Length:	600 mm
Width:	42 mm
Height/depth:	55 mm
Protection rating (IP):	IP40
Protection class:	II
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	220 to 240 V
Housing color:	white
Color temperature:	3000 to 4000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Temperature:	-30 to 40 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for built-in installation:	no
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	yes
Covering of the luminaire with thermal insulation material possible:	yes
DMX dimming:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life:	50000 h
Protection class (NEMA):	other
Suitable for lamp power:	9.30 W
Luminaire luminous efficacy:	107 lm/W
Power factor:	0.70
Wiring type:	Termination
Number of poles:	2
Conductor cross-section:	2.50 mm²
Nominal current:	39 to 42 mA
Replaceable operating device:	no
DALI-2 dimming:	no
Color consistency (McAdam ellipse):	SDCM4
Luminous flux maintenance at avg. Service life 50,000 hours at 25 °C ambient temp.:	70 %
Failure rate for average service life of 50,000 hours at 25 °C ambient temp. (tq):	50 %
Max. number of luminaires circuit breaker B16:	55
Max. Number of lights circuit breaker C16:	94
Integrated emergency power supply:	no
Constant luminous flux control:	no
Total harmonic distortion (THD):	0.30
Photobiological safety according to EN 62471:	RG1
Glare limitation (UGR):	25.20
Adjustable color temperature:	Levels
Adjustable luminous flux:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Number of LM1

Total harmonic distortion (THD)0.30

HABHB 507 9.3W 1000lm 830 840 ws

Manufacturer

HAN451222.002

GTIN4051859726739

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Beam angleFree-radiating/diffuse

Beam angle adjustableNo

Replaceable operating deviceNo

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Glare limitation (UGR)25.20

Width42 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM4

Color temperature3000 to 4000 K

Color temperature adjustableStages

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power9.30 W

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Housing colorWhite

Height/Depth55 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.70

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy107lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Luminous flux1000lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.70 %

Light distributionSymmetrical

Length600 mm

Max. number of luminaires Circuit breaker B1655

Max. number of luminaires Circuit breaker C1694

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Rated current39 to 42 mA

Emergency power supply integratedNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

Impact resistanceIK03

IP protection)IP40

Protection class (NEMA)Other

Protection classII

Voltage typeAC

System performance9.30 W

Temperature-30 to 40 °C
