RZB Toledo Flat UGR19 30W 2500lm 927-965 ws LED wall / ceiling light

In stock
SKU: 845008
€476.23
Into a basketIn the basketGo

Overview

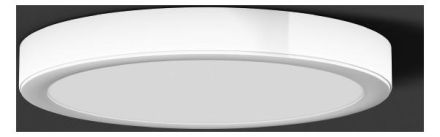

Super-flat LED surface-mounted downlight for high demands. Cylinder housing made of powder-coated sheet steel. Cover ring made of powder-coated die-cast aluminum. Diffuser made of durable polycarbonate (PC) with a smooth surface on the room side for low sensitivity to dirt and to prevent the settlement of germs and bacteria. No direct glare thanks to the satin-finished microprismatic diffuser. Tunable White dynamically adjustable from 2700 K to 6500 K. Suitable for ceiling mounting, wall mounting. Control gear integrated. With Casambi smart+free Bluetooth® control for wireless networking and operation via Android / iOS device, free app available for download.

Dimming potentiometer (integrated into the device):
Property Value
Max. System power: 30 W
Rated luminous flux according to IEC 62722-2-1: 2700 lm
Housing color: white
Protection class (IP): IP40
Outer diameter: 500 mm
Socket: without
Light source: LED not replaceable
Protection class: II
With light source: yes
With operating device: yes
Suitable for recessed mounting: no
Height/depth: 63 mm
With motion detector: no
Color temperature: 2700 to 6500 K
Nominal voltage: 220 to 240 V
Rated service life L80/B10 at 25 °C: 50000 h
Suitable for lamp power: 30 W
Beam angle: extremely wide beam >80°
Color rendering index CRI: 90-100
Suitable for ceiling mounting: yes
Light distribution: symmetrical
Operating device: LED operating device current-controlled
Impact resistance: IK06
Luminaire with limited surface temperature 'D-mark': no
Reflector: without
Suitable for number of bulbs: 1
Luminous flux: 2700 lm
Cover material: Structured plastic
Covering of the luminaire with thermal insulation material possible: yes
Type of voltage: AC/DC
Light color: multi-colored
Suitable for track mounting: no
Adjustability: not adjustable
Suitable for clamp mounting: no
Suitable for pendulum suspension: no
Suitable for podium/floor mounting: no
Suitable for truss mounting: no
With light sensor: no
Suitable for surface mounting: yes
Suitable for cable system: no
Surface: powder-coated
Brushed surface: no
LED nominal current at constant current: 125 to 136 mA
Dimming depending on the operating device: yes
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: no
Dimming DMX: no
Dimming DSI: no
no
Dimming GPRS: no
Dimming LineSwitch: no
Dimming manufacturer-specific: yes
Dimming mains voltage modulation: no
Dimming phase cut: no
Dimming phase leading: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Without dimming function: no
Light distributor: other
Light output: direct
Total harmonic distortion (THD): 0.10
Protection class (NEMA): other
Rated ambient temperature according to IEC62722-2-1: -20 to 25 °C
Type of wiring: suitable for through wiring
Power factor: 0.96
Number of poles: 2
Conductor cross-section: 2.50 mm²
Connection type: Plug-in terminal
Luminous efficacy: 90 lm/W
Suitable for computer workstations in accordance with EN 12464-1: yes
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Photobiological safety according to EN 62471: RG1
Color consistency (McAdam ellipse): SDCM3

Characteristics

Total harmonic distortion (THD)0.10
HABToledo Flat UGR19 30W 2500lm 927-965 ws
ManufacturerRZB
HAN901720.002.2.730
GTIN4051859725411
Covering the luminaire with thermal insulation material possibleYes
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Outer diameter500 mm
Rated lifetime L80/B10 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-12700lm
Rated ambient temperature according to IEC62722-2-1-20 to 25 °C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1Yes
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificYes
Dimming with push buttonNo
Dimming programmableNo
Color consistency (McAdam ellipse)SDCM3
Color temperature2700 to 6500 K
Color rendering index CRI90-100
VersionWithout
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for lamp power30W
Suitable for number of lamps1
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Housing colorWhite
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth63 mm
LED nominal current at constant current125 to 136 mA
Power factor0.96
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy90lm/W
LampsLED not replaceable
Light emissionDirect
Light colorMulticolored
Luminous flux2700lm
Light distributorOther
Light distributionSymmetrical
Max. system performance30W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage220 to 240 V
SurfacePowder coated
Brushed surfaceNo
Without dimming functionNo
Photobiological safety according to EN 62471RG1
Number of poles2
ReflectorWithout
Impact resistanceIK06
IP protection)IP40
Protection class (NEMA)Other
Protection classII
Voltage typeAC/DC
AdjustabilityNot adjustable
Cover materialPlastic structured
