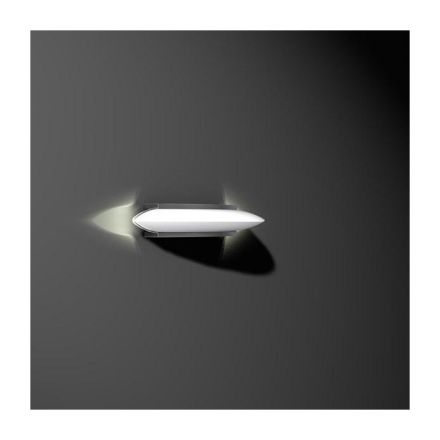

RZB 311672.004.1 6W 4000K 144x421x60 alu LED wall light

RZB 311672.004.1 6W 4000K 144x421x60 alu LED wall light

In stock

SKU: 527939

Price on request

€348.96

€0

Overview

A unique light for interiors in this form. Made from glass and aluminum. The shape and lighting technology serve as a long-lasting design element in interior architecture. A masterpiece of craftsmanship with exceptionally high and lasting design value: In the ring version as a ceiling surface or pendant light. As a variant with opal or Murano glass disc in the inner circle. In the half-ring version as a wall light. Energy-efficient LED lighting technology ensures even illumination of the large glass surface(s). Wide variety of variants as ceiling, wall and pendant lights in different sizes. Horizontal and vertical installation possible. LED service life 50,000 hours (L70, B10). Color tolerance: 3-fold MacAdam (3 SDCM). Painted die-cast aluminum fitting. Opal glass cover, satin matt, hand-blown. With clear glass end panels. The light body is attached with countersunk screws. Light source (LED) included in delivery. Energy efficiency class A++

Property	Value
Max. System power:	10 W
Rated luminous flux according to IEC 62722-2-1:	950 lm
Suitable for number of lamps:	1
Length:	423 mm
Width:	144 mm
Height/depth:	60 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	Aluminium
Housing material:	Aluminium
Color temperature:	4000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Opal glass
Light distributor:	other
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	asymmetric
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With Air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Suitable for lamp power:	10 W
Luminaire luminous efficacy:	95 lm/W
Power factor:	0.95
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²

Characteristics

HAB6W 4000K 144x421x60 alu

Manufacturer

HAN311672.004.1

GTIN4051859026297

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-1950lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width144 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for lamp power10W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorAluminum

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth60 mm

Power factor0.95

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy95lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorOther

Light distributionAsymmetrical

Length423 mm

Max. system performance10W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionYes

Number of poles3

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialGlass opal

Housing materialAluminum
