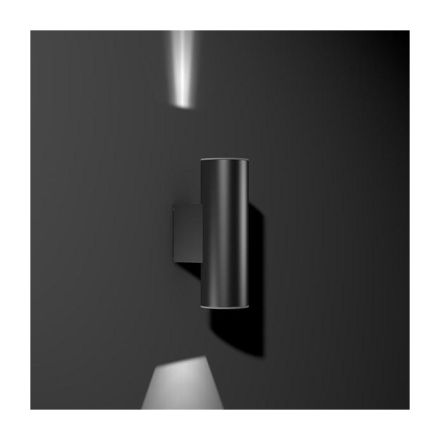

RZB 582020.0031.1 Cyl 8W 4000K 100x154x307 LED wall light

RZB 582020.0031.1 Cyl 8W 4000K 100x154x307 LED wall light

In stock

SKU: 532411

Price on request

€305.58

€0

Overview

Made in Germany. Four light heads, one mounting base. Seawater-resistant coating. Quick installation: Wall mounting and electrical connection are only made on the wall plate, the light head is then attached without screws and held in place using the RZB Gravolock system. Elegant appearance without visible screws thanks to the RZB Gravolock system with snap lock as theft protection. The innovative housing concept protects the light source and operating devices safely from all weather influences. The large cable inlet as standard allows easy mains forwarding without an additional junction box. The clear design language supports applications in modern architecture. Diaphragm valve for pressure equalization and prevention of condensation. Housing made of corrosion-resistant die-cast aluminum for outdoor use, powder-coated. Cover made of clear safety glass (ESG) with side-glow effect, ceramic coated. Cover attached using a bayonet lock. Wall mounting outside the sealed area with hole tolerance compensation. Screwless light attachment using Gravolock. Light source (mains voltage LED module) included in delivery. Supplied as standard with a diaphragm valve to prevent condensation. Electrical connection with plug-in terminals on the wall base with quick connector. With a second cable entry for mains transmission. Energy efficiency class A+

Feature	Value
Max. System power:	7.50 W
Rated luminous flux according to IEC 62722-2-1:	190 lm
Suitable for number of lamps:	1
Length:	100 mm
Width:	154 mm
Height/depth:	307 mm
Protection rating (IP):	IP65
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	anthracite
Housing material:	aluminum
Color temperature:	4000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 35 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	no
Cover material:	transparent glass
Light distributor:	without
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	asymmetrical
With Light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent from the operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Suitable for lamp power:	7.50 W
Luminaire luminous efficacy:	26 lm/W
Power factor:	0.60
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross section:	2.50 mm²

Characteristics

HABCyl 8W 4000K 100x154x307

Manufacturer

HAN582020.0031.1

GTIN4051859228042

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated luminous flux according to IEC 62722-2-1190lm

Rated ambient temperature according to IEC62722-2-1-20 to 35 °C

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Width154 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for lamp power7.50W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorAnthracite

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth307 mm

Power factor0.60

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy26lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionAsymmetrical

Length100 mm

Max. system performance7.50W

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles3

Impact resistanceIK03

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialGlass transparent

Housing materialAluminum
