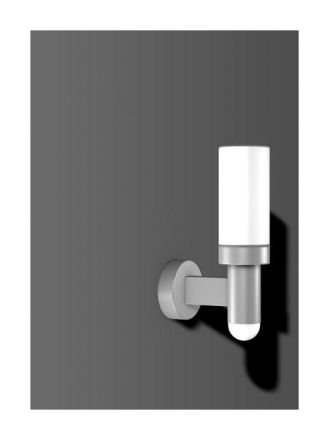

RZB 621092.004.19 Cylinder A60 77W E27 230x130x410 BWM LED wall light

RZB 621092.004.19 Cylinder A60 77W E27 230x130x410 BWM LED wall light

In stock

SKU: 531527

Price on request

€214.84

€0

Overview

Wall lights in a classic design language. Opal glass for a glare-free appearance. Resistant plastic cylinders made of UV-stabilized polyethylene also allow use in environments with increased mechanical stress. High-quality materials and workmanship as well as the high protection class ensure many years of problem-free operation. LED: Use of smart, cost-effective LED modules for mains voltage with high system light output for energy-saving operation. Wall arm made of powder-coated die-cast aluminum. Diffuser made of opal glass with a satin finish, hand-blown. Diffuser attached using a bayonet lock. Wall arm with motion detector including twilight switch. Mounting height of the wall light 2.0 m to 2.5 m., maximum switching capacity 1000 W (resistive load), switch-on time adjustable from 6 seconds to 8 minutes, twilight value 5 lux to 2000 lux adjustable, detection angle horizontal 360°, vertical 25°, detection range 9 m, energy efficiency class A++, C

Property	Value
Max. System power:	77 W
Suitable for number of bulbs:	1
Length:	230 mm
Width:	130 mm
Height/depth:	410 mm
Protection rating (IP):	IP54
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	0 to 250 V
Housing color:	Silver
Housing material:	Aluminum
Impact resistance:	IK02
Suitable for ceiling mounting:	no
Suitable for wall mounting:	yes
Voltage type:	AC/DC
With motion detector:	yes
Beam angle:	extremely wide beam >80°
Light source:	HV halogen lamp
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Socket:	E27
Connection type:	Plug-in terminal
With operating device:	no
Cover material:	Opal glass
Light distributor:	without
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	yes
Operating device:	not required
Suitable for recessed mounting:	no
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	yes
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	yes
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	77 W
Power factor:	1
Wiring type:	Termination
Number of poles:	3
Conductor cross-section:	2.50 mm²

Characteristics

HABCylinder A60 77W E27 230x130x410 BWM

Manufacturer

HAN621092.004.19

GTIN4051859185239

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Width130 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationYes

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

VersionE27

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for lamp power77W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorSilver

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth410 mm

Power factor1

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

LampsHV halogen lamp

Light emissionDirect/indirect

Light distributorWithout

Light distributionSymmetrical

Length230 mm

Max. system performance77W

With operating deviceNo

With motion detectorYes

With light sensorYes

With air slotsNo

Nominal voltage0 to 250V

Without dimming functionYes

Number of poles3

Impact resistanceIK02

IP protection)IP54

Protection class (NEMA)Other

Protection classI

Voltage typeAC/DC

Cover materialGlass opal

Housing materialAluminum

RZB 621092.004.19 Cylinder A60 77W E27 230x130x410 BWM LED wall light
