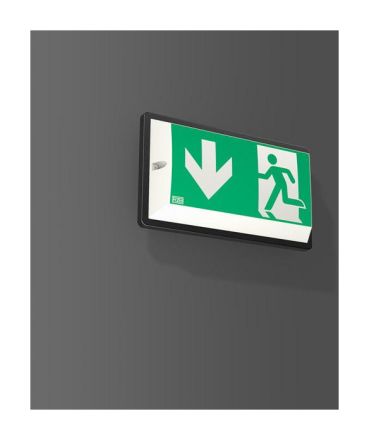

RZB 672126.003 3x1W 320x80x186 3h with foil LED wall light

RZB 672126.003 3x1W 320x80x186 3h with foil LED wall light

In stock

SKU: 529215

Price on request

€163.92

€0

Overview

Protection class IP 55, dust and jet water protected. Ball impact resistant in accordance with DIN 18032-03. Suitable for use in the food and beverage industry. Easy-to-assemble design thanks to fold-down mounting plate. 4 films for marking escape routes included. Luminaires with limited surface temperature in accordance with DIN EN 60598-2-24 for use in an environment in which a deposit of non-conductive dust on the luminaire can be expected. Holder made of plastic (polycarbonate). Cover made of plastic (polycarbonate), opal. Single battery system with integrated self-test. Can be connected in standby mode (B) or maintained mode (D). Set of films with escape signs for marking escape routes included. Light source (LED) included in delivery. Energy efficiency class A++

Property	Value
Housing color:	black
Protection rating (IP):	IP65
Protection class:	I
Voltage type:	AC
Detection range:	24 m
Color temperature:	6500 K
Length:	320 mm
Width:	80 mm
Height/Depth:	186 mm
Max. System performance:	5.80 W
Battery type:	NiCd
Nominal operating time:	3 h
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK08
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	opal plastic
With light source:	yes
Monitoring device:	automatic self-test
Mounting type:	Wall mounting
Housing material:	plastic
Suitable for marking type:	other
Feed-in:	decentralized (single battery)
Function:	Escape route marking
With pictogram:	yes
Suitable for number of lamps:	3
Number of lamp heads:	1
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	yes
Rated ambient temperature according to IEC62722-2-1:	5 to 35 °C
Type of wiring:	suitable for through wiring
Number of poles:	4
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
